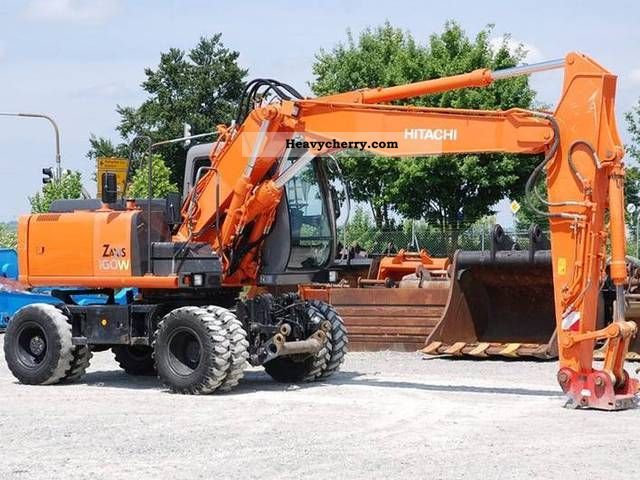

Hitachi ZX160W
Browse All Hitachi or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 27.92 ft in (8510 mm) |
| Shipping Height Of Unit | 10.27 ft in (3130 mm) |
| Max Cutting Height | 28.65 ft in (8730 mm) |
| Max Loading Height | 19.82 ft in (6040 mm) |
| Max Reach Along Ground | 27.17 ft in (8280 mm) |
| Max Vertical Wall Dig Depth | 13.88 ft in (4230 mm) |
| Max Digging Depth | 15.65 ft in (4770 mm) |
| Boom/Stick Option (Mex) 1 | boom w/ arm 2010mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 29.83 ft in (9090 mm) |
| Shipping Height Of Unit | 10 ft in (3045 mm) |
| Max Cutting Height | 29.83 ft in (9090 mm) |
| Max Loading Height | 20.84 ft in (6350 mm) |
| Max Reach Along Ground | 28.94 ft in (8820 mm) |
| Max Vertical Wall Dig Depth | 15.85 ft in (4830 mm) |
| Max Digging Depth | 17.52 ft in (5340 mm) |
| Boom/Stick Option (Mex) 2 | boom w/ arm 2580mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.24 ft in (3120 mm) |
| Shipping Length Of Unit | 29.93 ft in (9120 mm) |
| Max Cutting Height | 30.65 ft in (9340 mm) |
| Max Loading Height | 21.66 ft in (6600 mm) |
| Max Reach Along Ground | 30.48 ft in (9290 mm) |
| Max Vertical Wall Dig Depth | 17.49 ft in (5330 mm) |
| Max Digging Depth | 19.17 ft in (5840 mm) |
| Boom/Stick Option (Mex) 3 | boom w/ arm 3100mm |
Dimensions
| Wheelbase | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 7.19 ft in (2190 mm) |
| Overall Width | 8.31 in (2530 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Overall Width - Outriggers Down | 11.72 ft in (3570 mm) |
| Height To Top Of Cab | 10 ft in (3045 mm) |
| Upper Structure Clearance | 3.99 ft in (1215 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | 4BG1XABF |
| Net Power | 121 hp (90.3 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 264.2 cu in (4.4 L) |
| Torque Measured @ | 1800 rpm |
| Net Torque | 329.7 lb ft (447 Nm) |
| Aspiration | turbocharged intercooled |
Operational
| Operating Weight | 38140 lb (17300 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Cooling System Fluid Capacity | 5.1 gal (19.2 L) |
| Engine Oil Capacity | 4.2 gal (15.8 L) |
| Front Diff Fluid Capacity | 3 gal (11 L) |
| Rear Diff Fluid Capacity | 3.5 gal (13 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Operational Voltage | 24 V |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Type | 2 variable displacement axial piston pumps |
| Hydraulic Pump Flow Capacity | 97.3 gal/min (368 L/min) |
| Oscillating Axle Angle | 12 degrees |
Swing Mechanism
| Swing Speed | 13.3 rpm |
Transmission
| Transmission Type | 2-gear powershift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 19.9 mph (32 km/h) |
