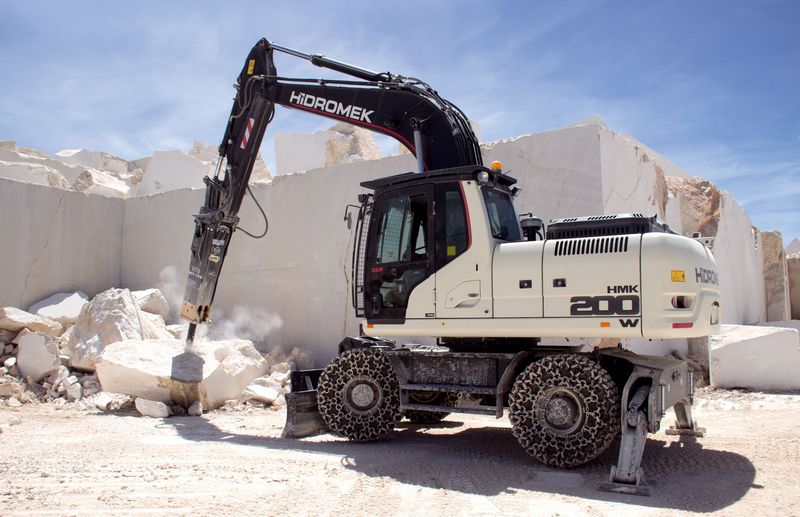

Hidromek HMK200W-2
Browse All Hidromek or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 32.03 ft in (9760 mm) |
| Shipping Height Of Unit | 10.47 ft in (3190 mm) |
| Max Cutting Height | 32.35 ft in (9860 mm) |
| Max Loading Height | 23.33 ft in (7110 mm) |
| Max Reach Along Ground | 30.98 ft in (9440 mm) |
| Max Vertical Wall Dig Depth | 15.82 ft in (4820 mm) |
| Max Digging Depth | 19.46 ft in (5930 mm) |
| Boom/Stick Option (Mex) 1 | Boom 5800mm w / Arm 2400mm |
Dimensions
| Wheelbase | 9.52 ft in (2900 mm) |
| Tail Swing Radius | 9.19 ft in (2800 mm) |
| Overall Width | 9.03 in (2750 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Overall Width - Outriggers Down | 12.6 ft in (3840 mm) |
| Height To Top Of Cab | 10.44 ft in (3180 mm) |
| Upper Structure Clearance | 4.24 ft in (1290 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D34-TLU2D |
| Gross Power | 153 hp (114.1 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 357.6 cu in (5.9 L) |
| Torque Measured @ | 1500 rpm |
| Net Torque | 435.2 lb ft (590 Nm) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 47619.9 lb (21600 kg) |
| Fuel Capacity | 93.6 gal (354 L) |
| Engine Oil Capacity | 4.8 gal (18 L) |
| Hydraulic System Fluid Capacity | 80.6 gal (305 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 5120.5 psi (35304 kPa) |
| Hydraulic Pump Type | Double Variable |
| Hydraulic Pump Flow Capacity | 118.4 gal/min (448 L/min) |
| Oscillating Axle Angle | 16 degrees |
| Tire Size | 10.00-20 14PR |
Swing Mechanism
| Swing Speed | 10.7 rpm |
Transmission
| Transmission Type | Fully Hydrostatic, 2 stage planetry gear |
| Max Travel Speed | 19.6 mph (31.5 km/h) |
| Drawbar Pull | 26124.8 lb (11850 kg) |
