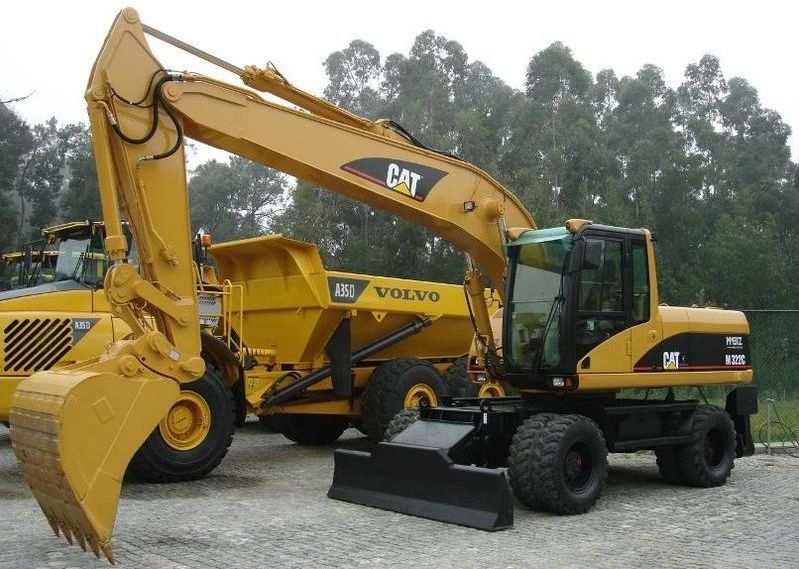

Caterpillar M322C
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 30.98 ft in (9440 mm) |
| Shipping Height Of Unit | 13.06 ft in (3980 mm) |
| Max Cutting Height | 34.16 ft in (10410 mm) |
| Max Loading Height | 22.97 ft in (7000 mm) |
| Max Reach Along Ground | 32.03 ft in (9760 mm) |
| Max Vertical Wall Dig Depth | 14.67 ft in (4470 mm) |
| Max Digging Depth | 20.61 ft in (6280 mm) |
| Boom/Stick Option (Mex) 1 | VA Boom 5440mm / Stick 2500mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 30.94 ft in (9430 mm) |
| Shipping Height Of Unit | 13.06 ft in (3980 mm) |
| Max Cutting Height | 35.14 ft in (10710 mm) |
| Max Loading Height | 23.96 ft in (7300 mm) |
| Max Reach Along Ground | 33.34 ft in (10160 mm) |
| Max Vertical Wall Dig Depth | 15.85 ft in (4830 mm) |
| Max Digging Depth | 21.92 ft in (6680 mm) |
| Boom/Stick Option (Mex) 2 | VA Boom 5440mm / Stick 2900mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.67 ft in (3250 mm) |
| Shipping Length Of Unit | 31.63 ft in (9640 mm) |
| Max Cutting Height | 31.3 ft in (9540 mm) |
| Max Loading Height | 20.44 ft in (6230 mm) |
| Max Reach Along Ground | 32.58 ft in (9930 mm) |
| Max Vertical Wall Dig Depth | 15.69 ft in (4780 mm) |
| Max Digging Depth | 19.92 ft in (6070 mm) |
| Boom/Stick Option (Mex) 3 | Boom 5650mm / Stick 2500mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.8 ft in (3290 mm) |
| Shipping Length Of Unit | 31.67 ft in (9650 mm) |
| Max Cutting Height | 32.03 ft in (9760 mm) |
| Max Loading Height | 21.17 ft in (6450 mm) |
| Max Reach Along Ground | 33.86 ft in (10320 mm) |
| Max Vertical Wall Dig Depth | 16.93 ft in (5160 mm) |
| Max Digging Depth | 21.23 ft in (6470 mm) |
| Boom/Stick Option (Mex) 4 | Boom 5650mm / Stick 2900mm |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Overall Width | 9.03 in (2750 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Overall Width - Outriggers Down | 13 ft in (3960 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Upper Structure Clearance | 4.29 ft in (1307 mm) |
Fuel Tank
| Fuel Tank Capacity | 101.8 gal (385.1 L) |
Engine
| Cylinders | 6 |
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3056E DIT ATAAC |
| Net Power | 164 hp (122.3 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 366 cu in (6 L) |
| Torque Measured @ | 1400 rpm |
| Net Torque | 512.7 lb ft (695 Nm) |
| Bore | 3.9 in (99.1 mm) |
| Stroke | 5 in (127 mm) |
| Aspiration | Turbocharged and Aftercooled |
| Engine Model | Cat 3056E ATAAC |
| Flywheel Power | 164 hp (122.3 kw) |
| Eec 80/1269 | 164 hp (122.3 kw) |
| Iso 9249 | 164 hp (122.3 kw) |
| Maximum Torque - 1,400 Rpm | 512.6 lb ft (695 Nm) |
Operational
| Operating Weight | 48060.8 lb (21800 kg) |
| Fuel Capacity | 101.8 gal (385 L) |
| Cooling System Fluid Capacity | 10.4 gal (39 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Front Diff Fluid Capacity | 3 gal (11 L) |
| Rear Diff Fluid Capacity | 3.9 gal (14.5 L) |
| Hydraulic System Fluid Capacity | 92.5 gal (350 L) |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 89.9 gal/min (340 L/min) |
| Oscillating Axle Angle | 18 degrees |
| Max Steering Angle | 35 degrees |
| Tire Size | 11.00-20 |
Swing Mechanism
| Swing Speed | 10.5 rpm |
| Swing Torque | 41525 lb ft (56300.4 Nm) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 15.6 mph (25 km/h) |
| Creeper Speed - 2nd Gear | 8.1 mph (13.1 km/h) |
| Maximum Travel Speed | 15.5 mph (25 km/h) |
| Forward/Reverse - 1st Gear | 5.6 mph (9.1 km/h) |
| Creeper Speed - 1st Gear | 2.5 mph (4.1 km/h) |
| Maximum Gradeability | 62% |
Swing Mechanism
| Maximum Flow | 29.6 gal/min |
| Pressure | 4496 psi |
Transmission
| 2nd Gear - Forward | 15.5 mph (25 km/h) |
| 2nd Gear - Reverse | 12.4 mph (20 km/h) |
Tires
| Standard | 11.00-20 dual pneumatic |
| Optional | 10.00-20 dual solid rubber; 18-R 19.5 XF single |
Weights
| Counterweight | 8598.1 lb (3900 kg) |
| Dozer Blade | 1985 lb (900.4 kg) |
| Outriggers | 2870 lb (1301.9 kg) |
| Rear - Dozer Only (1) | 46300 lb (21001.4 kg) |
| Front And Rear Outriggers (1) | 50045 lb (22700.1 kg) |
| Rear - Dozer, Front Outriggers (2) | 48060 lb (21799.7 kg) |
| Rear - Dozer, Front Outriggers (1) | 49160 lb (22298.7 kg) |
| Rear - Dozer Only (2) | 45195 lb (20500.2 kg) |
| Front And Rear Outriggers (2) | 48940 lb (22198.9 kg) |
| 2.48 M (8'2") Stick | 1322.8 lb (600 kg) |
| 2.78 M (9'2") Stick | 1477.1 lb (670.1 kg) |
| 2.2 M (7'3") Stick | 1278.7 lb (580 kg) |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.7 yd3 (1.3 m3) |
Hydraulic System
| Travel Circuit | 5076 psi |
| Normal | 5076 psi |
| Medium Pressure | 450 psi |
| Implement/Travel Circuit | 92 gal/min |
| High Pressure (1) | 4785.95 psi |
| High Pressure (2) | 89.82 gal/min |
Operating Specifications
| Travel Speed | 15.6 mph (25 km/h) |
| Maximum Reach - Ground Level | 33.9 ft in (10.4 m) |
| Maximum Bucket Capacity | 1.9 yd3 (1.4 m3) |
| Bucket Digging Force - One Piece Boom | 29450 lb (13358.3 kg) |
| Maximum Digging Depth - One Piece Boom | 20.7 ft in (6.3 m) |
| Maximum Reach - Ground Level, One Piece Boom | 33.9 ft in (10.4 m) |
| Stick Digging Force - One Piece Boom | 25853.1 lb (11726.8 kg) |
| Bucket Digging Force - Va Boom | 29450 lb (13358.3 kg) |
| Maximum Digging Depth - Va Boom | 21.4 ft in (6.6 m) |
| Maximum Reach - Ground Level, Va Boom | 33.4 ft in (10.2 m) |
| Stick Digging Force - Va Boom | 25853.1 lb (11726.8 kg) |
Service Refill Capacities
| Fuel Tank | 102 gal (386.2 L) |
| Hydraulic Tank | 59.4 gal (224.9 L) |
| Hydraulic System - Including Tank | 92 gal (348.3 L) |
| Engine Crankcase | 4.3 gal (16.1 L) |
| Powershift Transmission | 0.7 gal (2.5 L) |
| Front Steering Axle - Differential | 3 gal (11.1 L) |
| Rear Axle - Housing (Differential) | 3.9 gal (14.5 L) |
| Cooling | 10.3 gal (39 L) |
| Disk Brakes | 0.5 gal (1.9 L) |
Cab
| Cab/Fogs Option | ISO 10262 |
