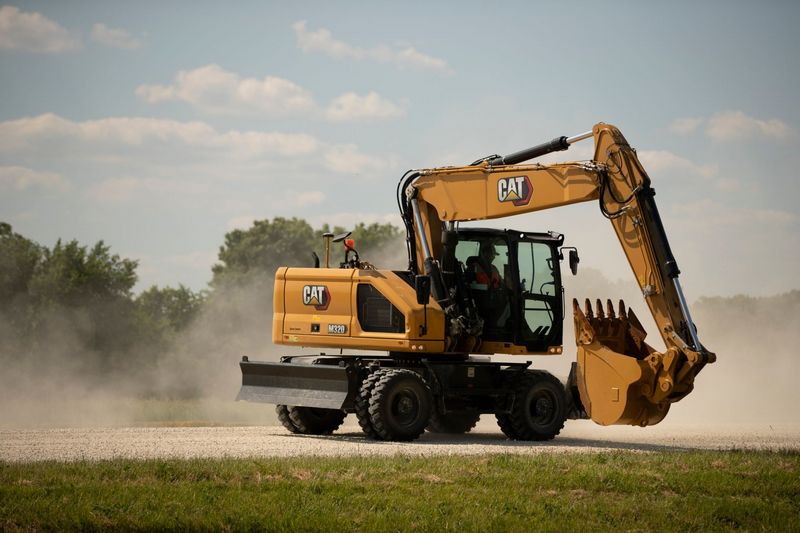

Caterpillar M320
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Cutting Height | 28.29 ft in (8620 mm) |
| Max Loading Height | 19.89 ft in (6060 mm) |
| Max Reach Along Ground | 29.7 ft in (9050 mm) |
| Max Vertical Wall Dig Depth | 8.08 ft in (2460 mm) |
| Max Digging Depth | 17.03 ft in (5190 mm) |
| Boom/Stick Option (Mex) 1 | boom w/ stick 1900mm |
Boom/Stick Option (Mex) 2
| Max Cutting Height | 29.43 ft in (8970 mm) |
| Max Loading Height | 20.67 ft in (6300 mm) |
| Max Reach Along Ground | 31.53 ft in (9610 mm) |
| Max Vertical Wall Dig Depth | 12.83 ft in (3910 mm) |
| Max Digging Depth | 19 ft in (5790 mm) |
| Boom/Stick Option (Mex) 2 | boom w/ stick 2500mm |
Boom/Stick Option (Mex) 3
| Max Cutting Height | 28.88 ft in (8800 mm) |
| Max Loading Height | 20.38 ft in (6210 mm) |
| Max Reach Along Ground | 32.49 ft in (9900 mm) |
| Max Vertical Wall Dig Depth | 12.05 ft in (3670 mm) |
| Max Digging Depth | 20.31 ft in (6190 mm) |
| Boom/Stick Option (Mex) 3 | boom w/ stick 2900mm |
Boom/Stick Option (Mex) 4
| Max Cutting Height | 31.17 ft in (9500 mm) |
| Max Loading Height | 22.45 ft in (6840 mm) |
| Max Reach Along Ground | 36.68 ft in (11180 mm) |
| Max Vertical Wall Dig Depth | 17.52 ft in (5340 mm) |
| Max Digging Depth | 24.51 ft in (7470 mm) |
| Boom/Stick Option (Mex) 4 | boom w/ stick 4200mm |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Overall Width | 9.03 in (2750 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Overall Width - Outriggers Down | 12.8 ft in (3900 mm) |
| Height To Top Of Cab | 10.32 ft in (3145 mm) |
| Upper Structure Clearance | 4.3 ft in (1310 mm) |
Fuel Tank
| Fuel Tank Capacity | 98 gal (371 L) |
Engine
| Engine Model | 3116T |
| Gross Power | 139 hp (103.7 kw) |
| Displacement | 402.8 cu in (6.7 L) |
| Engine Model | Cat 3116 DIT |
| Flywheel Power | 130 hp (97 kw) |
Operational
| Fuel Capacity | 97.8 gal (370 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Hydraulic System Relief Valve Pressure | 4785 psi (32991.4 kPa) |
| Hydraulic Pump Flow Capacity | 114.2 gal/min (432 L/min) |
| Tire Size | dual 11-20 16PR |
Transmission
| Max Travel Speed | 12.5 mph (20 km/h) |
| Maximum Travel Speed | 12.4 mph (20 km/h) |
| Creeper Speed - 1st Gear | 1.8 mph (2.9 km/h) |
| Maximum Gradeability | 57 |
Swing Mechanism
| Maximum Flow | 29.59 gal/min |
Hydraulic System
| Travel Circuit | 4779.04 psi |
| Normal | 4779.04 psi |
| Implement/Travel Circuit | 84.54 gal/min |
Operating Specifications
| Travel Speed | 12.4 mph (20 km/h) |
| Maximum Reach - Ground Level | 32.5 ft in (10 m) |
| Maximum Bucket Capacity | 1.8 yd3 (1.4 m3) |
| Bucket Digging Force - One Piece Boom | 28575 lb (12961.5 kg) |
| Maximum Digging Depth - One Piece Boom | 20.3 ft in (6.2 m) |
| Maximum Reach - Ground Level, One Piece Boom | 32.5 ft in (10 m) |
| Stick Digging Force - One Piece Boom | 20250 lb (9185.3 kg) |
| Bucket Digging Force - Va Boom | 28575 lb (12961.5 kg) |
| Maximum Digging Depth - Va Boom | 20.9 ft in (6.4 m) |
| Maximum Reach - Ground Level, Va Boom | 31.8 ft in (9.7 m) |
| Stick Digging Force - Va Boom | 20250 lb (9185.3 kg) |
Service Refill Capacities
| Fuel Tank | 97.8 gal (370 L) |
| Hydraulic Tank | 54.2 gal (205.1 L) |
| Hydraulic System - Including Tank | 79.3 gal (300 L) |
| Engine Crankcase | 5.6 gal (21.1 L) |
| Powershift Transmission | 0.8 gal (3 L) |
| Front Steering Axle - Differential | 3 gal (11.1 L) |
| Rear Axle - Housing (Differential) | 3.2 gal (12 L) |
| Cooling | 9.3 gal (35.1 L) |
