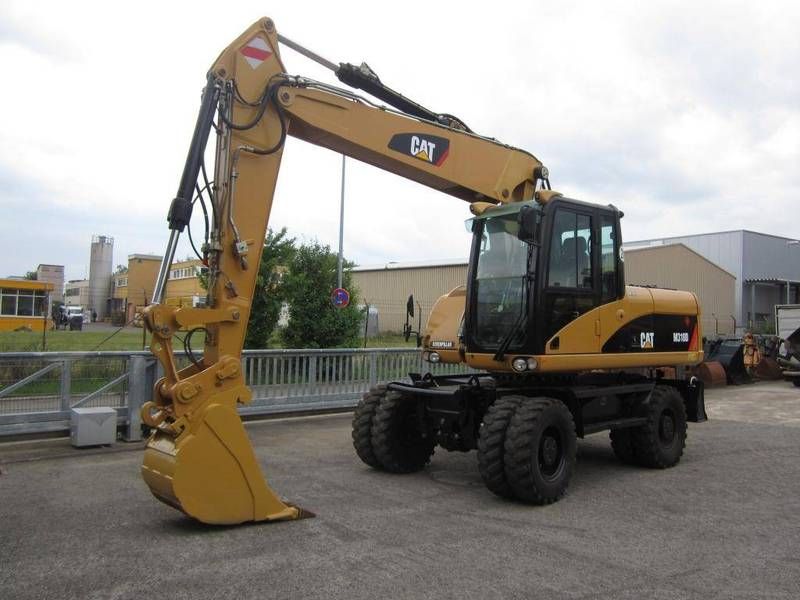

Caterpillar M318D
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 29.11 ft in (8870 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Cutting Height | 31.86 ft in (9710 mm) |
| Max Loading Height | 21.99 ft in (6700 mm) |
| Max Reach Along Ground | 29.43 ft in (8970 mm) |
| Max Vertical Wall Dig Depth | 10.57 ft in (3220 mm) |
| Max Digging Depth | 18.87 ft in (5750 mm) |
| Boom/Stick Option (Mex) 1 | VA Boom / stick 2.2m |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 28.94 ft in (8820 mm) |
| Shipping Height Of Unit | 10.83 ft in (3300 mm) |
| Max Cutting Height | 33.5 ft in (10210 mm) |
| Max Loading Height | 23.59 ft in (7190 mm) |
| Max Reach Along Ground | 31.47 ft in (9590 mm) |
| Max Vertical Wall Dig Depth | 13 ft in (3960 mm) |
| Max Digging Depth | 20.87 ft in (6360 mm) |
| Boom/Stick Option (Mex) 2 | VA Boom / stick 2.8m |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.47 ft in (3190 mm) |
| Shipping Length Of Unit | 29.11 ft in (8870 mm) |
| Max Cutting Height | 28.75 ft in (8760 mm) |
| Max Loading Height | 19.36 ft in (5900 mm) |
| Max Reach Along Ground | 29.53 ft in (9000 mm) |
| Max Vertical Wall Dig Depth | 9.45 ft in (2880 mm) |
| Max Digging Depth | 18.71 ft in (5700 mm) |
| Boom/Stick Option (Mex) 3 | One-piece Boom / stick 2.2m |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.93 ft in (3330 mm) |
| Shipping Length Of Unit | 29.37 ft in (8950 mm) |
| Max Cutting Height | 30.09 ft in (9170 mm) |
| Max Loading Height | 20.58 ft in (6270 mm) |
| Max Reach Along Ground | 31.5 ft in (9600 mm) |
| Max Vertical Wall Dig Depth | 11.88 ft in (3620 mm) |
| Max Digging Depth | 20.67 ft in (6300 mm) |
| Boom/Stick Option (Mex) 4 | One-piece Boom / stick 2.8m |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 8.21 ft in (2500 mm) |
| Overall Width | 8.37 in (2550 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Overall Width - Outriggers Down | 12.54 ft in (3820 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Upper Structure Clearance | 4.2 ft in (1280 mm) |
Undercarriage
| Ground Clearance | 1.25 ft in (381 mm) |
| Minimum Turning Radius - Standard Axle - End Of Va Boom | 23 ft in (7.02 m) |
| Minimum Turning Radius - Wide Axle - End Of Va Boom | 23 ft in (7.02 m) |
| Minimum Turning Radius - Wide Axle - Outside Of Tire | 21 ft in (6.41 m) |
| Oscillation Axle Angle | 9 degrees |
| Minimum Turning Radius - Standard Axle - Outside Of Tire | 21 ft in (6.41 m) |
| Minimum Turning Radius - Wide Axle - End Of One-Piece Boom | 28 ft in (8.54 m) |
| Minimum Turning Radius - Standard Axle - End Of One-Piece Boom | 27 ft in (8.23 m) |
Engine
| Cylinders | 6 |
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C6.6 Acert |
| Gross Power | 174 hp (129.8 kw) |
| Net Power | 166 hp (123.8 kw) |
| Displacement | 403 cu in (6.7 L) |
| Torque Measured @ | 1400 rpm |
| Net Torque | 596 lb ft (808.1 Nm) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 166 hp (123.8 kw) |
| Net Power - 80/1269/Eec | 166 hp (123.8 kw) |
| Engine Model | Cat C6.6 with ACERT Technology |
| Maximum Torque - 1,400 Rpm | 596 lb ft (808.1 Nm) |
| Ratings | 1800 rpm |
| Net Power - 1,800 Rpm - Iso 9249 | 166 hp (123.8 kw) |
Operational
| Operating Weight | 44313 lb (20100 kg) |
| Fuel Capacity | 102 gal (386.2 L) |
| Cooling System Fluid Capacity | 8.5 gal (32.2 L) |
| Engine Oil Capacity | 4 gal (15.2 L) |
| Front Diff Fluid Capacity | 2.8 gal (10.6 L) |
| Rear Diff Fluid Capacity | 3.7 gal (14.1 L) |
| Hydraulic System Fluid Capacity | 71 gal (268.8 L) |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic System Relief Valve Pressure | 5076 psi (34997.8 kPa) |
| Hydraulic Pump Flow Capacity | 77 gal/min (291.5 L/min) |
| Oscillating Axle Angle | 9 degrees |
| Max Steering Angle | 35 degrees |
| Tire Size | 10.00-20 16PR, dual |
Swing Mechanism
| Swing Speed | 10.5 rpm |
| Swing Torque | 35403 lb ft (48000.1 Nm) |
Transmission
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 23 mph (37.1 km/h) |
| Creeper Speed - 2nd Gear | 8 mph (12.9 km/h) |
| Forward/Reverse - 1st Gear | 5 mph (8.1 km/h) |
| Creeper Speed - 1st Gear | 2 mph (3.3 km/h) |
| Forward/Reverse - 2nd Gear | 23 mph (37.1 km/h) |
| Maximum Gradeability | 60% |
Tires
| Standard | 1) 10.00-20 (dual pneumatic) |
| Optional | 1) 11.00-20 (dual pneumatic) 2) 18 R 19.5 XF (single pneumatic) 3) 10.00-20 (dual solid rubber) |
Weights
| Counterweight | 8810 lb (3996.2 kg) |
| Dozer Blade | 1700 lb (771.2 kg) |
| Outriggers | 2270 lb (1029.7 kg) |
| Va Boom* - Rear Dozer Only | 39353 lb (17850.3 kg) |
| Va Boom* - Rear Dozer, Front Outriggers | 41667 lb (18899.9 kg) |
| Va Boom* - Front And Rear Outriggers | 42108 lb (19099.9 kg) |
| One-Piece Boom* - Rear Dozer Only | 38250 lb (17350 kg) |
| One-Piece Boom* - Front And Rear Outriggers | 40896 lb (18550.2 kg) |
| One-Piece Boom* - Rear Dozer, Front Outriggers | 40455 lb (18350.1 kg) |
| Sticks - Short (2200 Mm) | 1213 lb (550.3 kg) |
| Sticks - Medium (2500 Mm) | 1279 lb (580.2 kg) |
| Sticks - Long (2800 Mm) | 1323 lb (600.2 kg) |
| Sticks - Industrial (3300 Mm) | 1146 lb (519.9 kg) |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.1 yd3 (1.6 m3) |
Hydraulic System
| System | 67 gal (US) |
| Tank Capacity | 45 gal (170.4 L) |
| Maximum Pressure - Auxiliary Circuit - High Pressure | 5076 psi |
| Maximum Pressure - Implement Circuit - Normal | 5076 psi |
| Maximum Pressure - Implement Circuit - Heavy Lift | 5439 psi |
| Maximum Pressure - Auxiliary Circuit - Medium Pressure | 2683 psi |
| Maximum Pressure - Travel Circuit | 5076 psi |
| Maximum Flow - Implement/Travel Circuit | 77 gal/min |
| Maximum Flow - Swing Mechanism | 30 gal/min |
| Maximum Flow - Auxiliary Circuit - High Pressure | 66 gal/min |
| Maximum Flow - Auxiliary Circuit - Medium Pressure | 13 gal/min |
| Maximum Pressure - Swing Mechanism | 4496 psi |
Service Refill Capacities
| Fuel Tank | 102 gal (386.2 L) |
| Engine Crankcase | 4 gal (15.2 L) |
| Final Drive | 0.7 gal (2.7 L) |
| Powershift Transmission | 0.7 gal (2.7 L) |
| Front Steering Axle - Differential | 2.8 gal (10.6 L) |
| Rear Axle - Housing (Differential) | 3.7 gal (14.1 L) |
| Cooling | 9.5 gal (36 L) |
Drive
| Maximum Travel Speed | 23 mph (37.1 km/h) |
Sound Levels
| Exterior Sound | Exterior Sound |
Working Ranges
| Maximum Digging Depth | 20.9 ft in (6.4 m) |
| Maximum Reach - Ground Level | 31.5 ft in (9.7 m) |
Bucket Specifications
| Bucket Capacities | 0.38 to 1.26 m3 (0.5 to 1.65 yd3) |
Cab/Rops/Fogs
| Standards | Standards |
