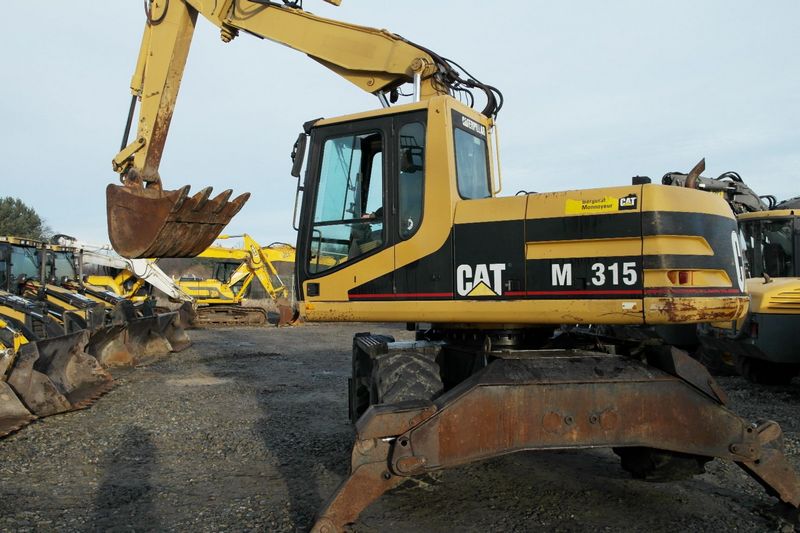

Caterpillar M315
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Cutting Height | 26.84 ft in (8180 mm) |
| Max Loading Height | 19.49 ft in (5940 mm) |
| Max Reach Along Ground | 26.09 ft in (7950 mm) |
| Max Vertical Wall Dig Depth | 8.24 ft in (2510 mm) |
| Max Digging Depth | 15.26 ft in (4650 mm) |
| Boom/Stick Option (Mex) 1 | boom w/ stick 1700mm |
Boom/Stick Option (Mex) 2
| Max Cutting Height | 27.96 ft in (8520 mm) |
| Max Loading Height | 20.21 ft in (6160 mm) |
| Max Reach Along Ground | 27.37 ft in (8340 mm) |
| Max Vertical Wall Dig Depth | 13.13 ft in (4000 mm) |
| Max Digging Depth | 16.57 ft in (5050 mm) |
| Boom/Stick Option (Mex) 2 | boom w/ stick 2100mm |
Boom/Stick Option (Mex) 3
| Max Cutting Height | 28.52 ft in (8690 mm) |
| Max Loading Height | 20.77 ft in (6330 mm) |
| Max Reach Along Ground | 28.32 ft in (8630 mm) |
| Max Vertical Wall Dig Depth | 14.01 ft in (4270 mm) |
| Max Digging Depth | 17.56 ft in (5350 mm) |
| Boom/Stick Option (Mex) 3 | boom w/ stick 2400mm |
Boom/Stick Option (Mex) 4
| Max Cutting Height | 28.88 ft in (8800 mm) |
| Max Loading Height | 21.13 ft in (6440 mm) |
| Max Reach Along Ground | 28.94 ft in (8820 mm) |
| Max Vertical Wall Dig Depth | 14.7 ft in (4480 mm) |
| Max Digging Depth | 18.21 ft in (5550 mm) |
| Boom/Stick Option (Mex) 4 | boom w/ stick 2600mm |
Dimensions
| Wheelbase | 8.21 ft in (2500 mm) |
| Overall Width | 8.21 in (2500 mm) |
| Ground Clearance | 1.24 ft in (375 mm) |
| Overall Width - Outriggers Down | 12.59 ft in (3835 mm) |
| Height To Top Of Cab | 10.11 ft in (3080 mm) |
| Upper Structure Clearance | 4.15 ft in (1262 mm) |
Fuel Tank
| Fuel Tank Capacity | 63.4 gal (240 L) |
Engine
| Engine Model | 3054TA |
| Gross Power | 121.9 hp (91 kw) |
| Displacement | 243.5 cu in (4 L) |
| Engine Model | 3054 TA |
| Flywheel Power | 114 hp (85.1 kw) |
Operational
| Fuel Capacity | 63.5 gal (240 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Hydraulic System Relief Valve Pressure | 4785 psi (32991.4 kPa) |
| Hydraulic Pump Flow Capacity | 79.3 gal/min (300 L/min) |
| Tire Size | dual 10-20 16PR |
Transmission
| Max Travel Speed | 21.2 mph (34 km/h) |
| Creeper Speed - 2nd Gear | 10 mph (16 km/h) |
| Maximum Travel Speed | 21.1 mph (34 km/h) |
| Maximum Gradeability | 65 |
Swing Mechanism
| Maximum Flow | 21.13 gal/min |
Hydraulic System
| Travel Circuit | 4565.69 psi |
| Normal | 4565.69 psi |
| Implement/Travel Circuit | 58.12 gal/min |
Operating Specifications
| Travel Speed | 21.1 mph (34 km/h) |
| Maximum Reach - Ground Level | 29.8 ft in (9.1 m) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
| Bucket Digging Force - One Piece Boom | 22260 lb (10097 kg) |
| Maximum Digging Depth - One Piece Boom | 18.2 ft in (5.6 m) |
| Maximum Reach - Ground Level, One Piece Boom | 28.9 ft in (8.9 m) |
| Stick Digging Force - One Piece Boom | 13040 lb (5914.9 kg) |
| Bucket Digging Force - Va Boom | 22260 lb (10097 kg) |
| Maximum Digging Depth - Va Boom | 19 ft in (5.8 m) |
| Maximum Reach - Ground Level, Va Boom | 29.8 ft in (9.1 m) |
| Stick Digging Force - Va Boom | 13040 lb (5914.9 kg) |
Service Refill Capacities
| Fuel Tank | 63.4 gal (240 L) |
| Hydraulic Tank | 30.4 gal (115.1 L) |
| Hydraulic System - Including Tank | 55.5 gal (210.1 L) |
| Engine Crankcase | 2.3 gal (8.6 L) |
| Powershift Transmission | 0.8 gal (3 L) |
| Front Steering Axle - Differential | 2.3 gal (8.6 L) |
| Rear Axle - Housing (Differential) | 3 gal (11.1 L) |
| Cooling | 8 gal (30.1 L) |
