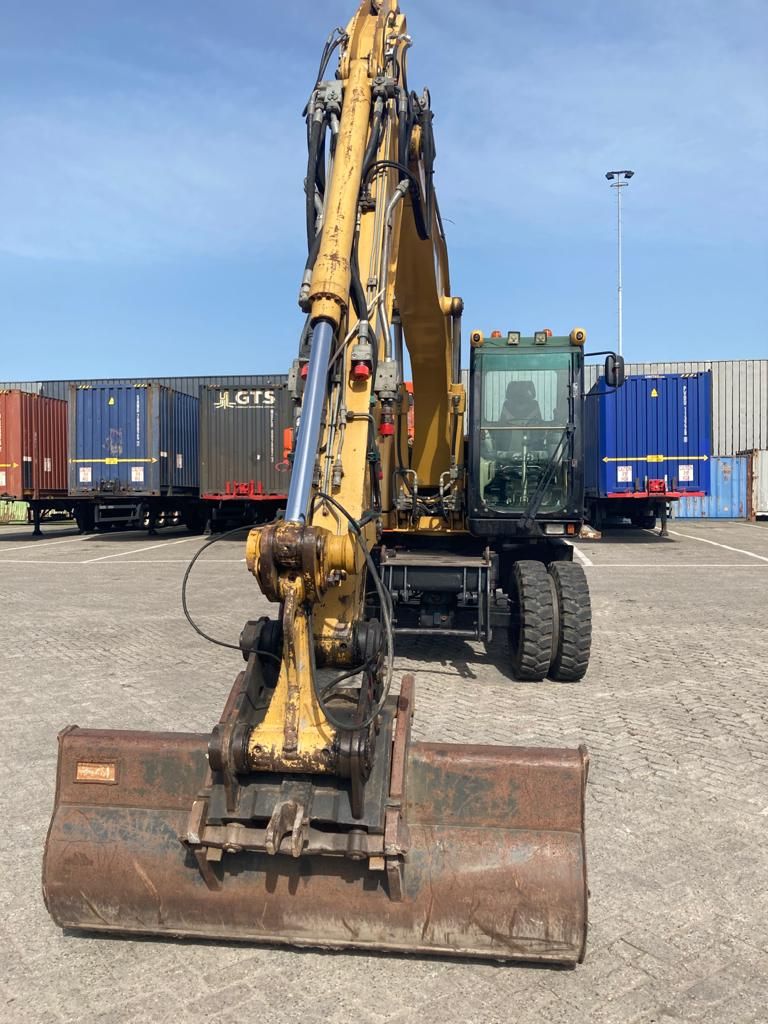

Caterpillar M313C
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Cutting Height | 31.73 ft in (9670 mm) |
| Max Loading Height | 22.64 ft in (6900 mm) |
| Max Reach Along Ground | 27.86 ft in (8490 mm) |
| Max Vertical Wall Dig Depth | 11.49 ft in (3500 mm) |
| Max Digging Depth | 16.93 ft in (5160 mm) |
| Boom/Stick Option (Mex) 1 | VA boom w/ stick 2000mm |
Boom/Stick Option (Mex) 2
| Max Cutting Height | 32.22 ft in (9820 mm) |
| Max Loading Height | 23.17 ft in (7060 mm) |
| Max Reach Along Ground | 28.68 ft in (8740 mm) |
| Max Vertical Wall Dig Depth | 11.82 ft in (3600 mm) |
| Max Digging Depth | 17.89 ft in (5450 mm) |
| Boom/Stick Option (Mex) 2 | VA boom w/ stick 2300mm |
Boom/Stick Option (Mex) 3
| Max Cutting Height | 33.01 ft in (10060 mm) |
| Max Loading Height | 23.92 ft in (7290 mm) |
| Max Reach Along Ground | 29.63 ft in (9030 mm) |
| Max Vertical Wall Dig Depth | 12.77 ft in (3890 mm) |
| Max Digging Depth | 18.87 ft in (5750 mm) |
| Boom/Stick Option (Mex) 3 | VA boom w/ stick 2600mm |
Boom/Stick Option (Mex) 4
| Max Cutting Height | 28.22 ft in (8600 mm) |
| Max Loading Height | 19.39 ft in (5910 mm) |
| Max Reach Along Ground | 27.01 ft in (8230 mm) |
| Max Vertical Wall Dig Depth | 11.19 ft in (3410 mm) |
| Max Digging Depth | 16.38 ft in (4990 mm) |
| Boom/Stick Option (Mex) 4 | One piece boom w/ stick 2000mm |
Dimensions
| Wheelbase | 8.21 ft in (2500 mm) |
| Overall Width | 8.37 in (2550 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Overall Width - Outriggers Down | 12.03 ft in (3665 mm) |
| Height To Top Of Cab | 10.24 ft in (3120 mm) |
| Upper Structure Clearance | 4.05 ft in (1232 mm) |
| Counterweight Clearance | 4.05 ft in (1231.91 mm) |
| Support Point | 136.62 in (3469.9 mm) |
Fuel Tank
| Fuel Tank Capacity | 62.1 gal (235 L) |
Engine
| Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3054E DIT ATAAC diesel engine |
| Net Power | 118 hp (88 kw) |
| Displacement | 269 cu in (4.5 L) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Engine Model | Cat 3054E ATAAC |
| Eec 80/1269 | 118 hp (88 kw) |
| Iso 9249 | 118 hp (88 kw) |
| Maximum Torque - 1,400 Rpm | 368.8 lb ft (500.1 Nm) |
Operational
| Operating Weight | 31967.1 lb (14500 kg) |
| Fuel Capacity | 62.1 gal (235 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 2.4 gal (9 L) |
| Front Diff Fluid Capacity | 2.4 gal (9 L) |
| Rear Diff Fluid Capacity | 3 gal (11 L) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 71.4 gal/min (270 L/min) |
| Oscillating Axle Angle | 18 degrees |
| Max Steering Angle | 33.5 degrees |
| Tire Size | 10-20 (dual pneumatic) |
Swing Mechanism
| Swing Speed | 10.5 rpm |
Transmission
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 21.2 mph (34 km/h) |
| Creeper Speed - 2nd Gear | 9.9 mph (16 km/h) |
| Maximum Travel Speed | 21 mph (33.8 km/h) |
| Forward/Reverse - 1st Gear | 5 mph (8.1 km/h) |
| Creeper Speed - 1st Gear | 2.5 mph (4.1 km/h) |
| Forward/Reverse - 2nd Gear | 21 mph (33.8 km/h) |
| Maximum Gradeability | 67 % |
Swing Mechanism
| Maximum Flow | 21.1 gal/min |
| Pressure | 5076 psi |
Tires
| Standard | 10.00-20 dual pneumatic |
| Optional | See Optional Equipment |
Weights
| Counterweight | 6393 lb (2899.9 kg) |
| Dozer Blade | 1422 lb (645.1 kg) |
| Outriggers | 1962 lb (890 kg) |
| Rear - Dozer Only (1) | 29983 lb (13600.1 kg) |
| Front And Rear Outriggers (1) | 32518 lb (14750 kg) |
| Rear - Dozer, Front Outriggers (2) | 30865 lb (14000.2 kg) |
| Rear - Dozer, Front Outriggers (1) | 31967 lb (14500 kg) |
| Rear - Dozer Only (2) | 28880 lb (13099.8 kg) |
| Front And Rear Outriggers (2) | 31747 lb (14400.2 kg) |
| 2.6 M (8'6") Stick | 937 lb (425.1 kg) |
| 2.01 M (6'7") Stick | 783 lb (355.2 kg) |
| 2.32 M (7'7") Stick | 849 lb (385.1 kg) |
| 2.9 M (9'6") Industrial Stick | 904 lb (410.1 kg) |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
Hydraulic System
| Travel Circuit | 5076 psi |
| Normal | 5076 psi |
| Implement/Travel Circuit | 50 gal/min |
| High Pressure (1) | 4786 psi |
| Medium Pressure (2) | 13 gal/min |
| High Pressure (2) | 50 gal/min |
| Medium Pressure (1) | 2500 psi |
Operating Specifications
| Maximum Reach - Ground Level | 29.7 ft in (9.1 m) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
| Bucket Digging Force - One Piece Boom | 19558.4 lb (8871.6 kg) |
| Maximum Digging Depth - One Piece Boom | 18.4 ft in (5.6 m) |
| Maximum Reach - Ground Level, One Piece Boom | 28.8 ft in (8.8 m) |
| Stick Digging Force - One Piece Boom | 15287.1 lb (6934.1 kg) |
| Bucket Digging Force - Va Boom | 19558.4 lb (8871.6 kg) |
| Maximum Digging Depth - Va Boom | 18.9 ft in (5.8 m) |
| Maximum Reach - Ground Level, Va Boom | 29.7 ft in (9.1 m) |
| Stick Digging Force - Va Boom | 15287.1 lb (6934.1 kg) |
Service Refill Capacities
| Fuel Tank | 62 gal (234.7 L) |
| Hydraulic Tank | 25 gal (94.7 L) |
| Hydraulic System - Including Tank | 44 gal (166.6 L) |
| Engine Crankcase | 2.4 gal (9.1 L) |
| Final Drive | 0.7 gal (2.4 L) |
| Powershift Transmission | 0.8 gal (3.1 L) |
| Front Steering Axle - Differential | 2.4 gal (9.1 L) |
| Rear Axle - Housing (Differential) | 2.9 gal (11 L) |
| Cooling | 8 gal (30.3 L) |
Cab
| Cab/Fogs Option | ISO 10262 |
