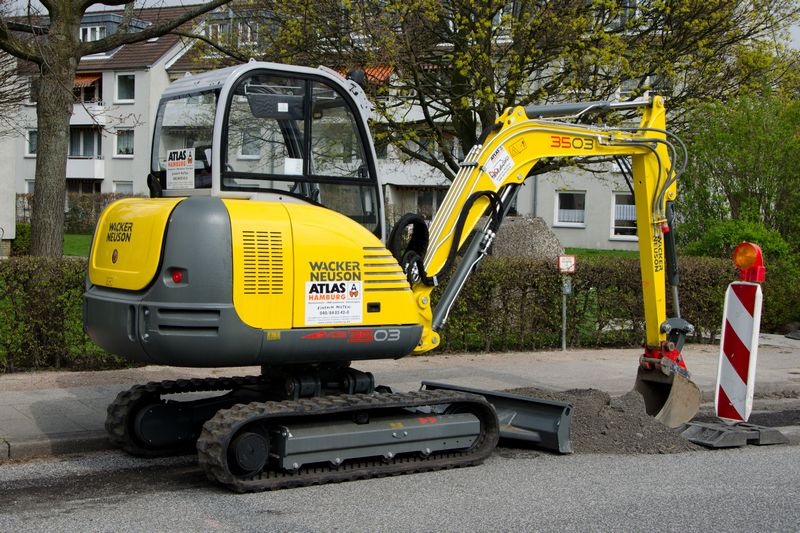

Wacker Neuson 3503
Browse All Wacker Neuson or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.07 ft in (5201.92 mm) |
| Max Cutting Height | 16.13 ft in (4914.9 mm) |
| Shipping Height Of Unit | 7.85 ft in (2392.68 mm) |
| Max Loading Height | 11.88 ft in (3619.5 mm) |
| Max Reach Along Ground | 17.05 ft in (5194.3 mm) |
| Max Vertical Wall Digging Depth | 6.85 ft in (2087.88 mm) |
| Max Digging Depth | 10.62 ft in (3235.96 mm) |
| Boom/Stick Option (Hex) 1 | Standard arm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 16.78 ft in (5113.03 mm) |
| Shipping Length Of Unit | 17.07 ft in (5201.92 mm) |
| Max Loading Height | 12.53 ft in (3817.62 mm) |
| Shipping Height Of Unit | 7.85 ft in (2392.68 mm) |
| Max Reach Along Ground | 18 ft in (5483.86 mm) |
| Max Vertical Wall Digging Depth | 7.73 ft in (2354.58 mm) |
| Max Digging Depth | 11.6 ft in (3535.68 mm) |
| Boom/Stick Option (Hex) 2 | Long arm |
Dimensions
| Width To Outside Of Tracks | 5.32 ft in (1620.52 mm) |
| Length Of Track On Ground | 17.07 ft in (5201.92 mm) |
| Ground Clearance | 0.92 ft in (279.4 mm) |
| Height To Top Of Cab | 7.85 ft in (2392.68 mm) |
| Tail Swing Radius | 4.56 ft in (1389.38 mm) |
Undercarriage
| Shoe Size | 12 in (304.8 mm) |
| Ground Pressure | 47 psi (324.06 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | 404F-22 |
| Gross Power | 40 hp (29.9 kw) |
| Power Measured @ | 1975 rpm |
| Aspiration | Water-cooled |
Operational
| Operating Weight | 9449 lb (4286 kg) |
| Fuel Capacity | 13.7 gal (51.9 L) |
| Hydraulic System Fluid Capacity | 13.2 gal (50 L) |
| Operating Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 3481 psi (24000.7 kPa) |
| Hydraulic Pump Flow Capacity | 30.1 gal/min (114 L/min) |
