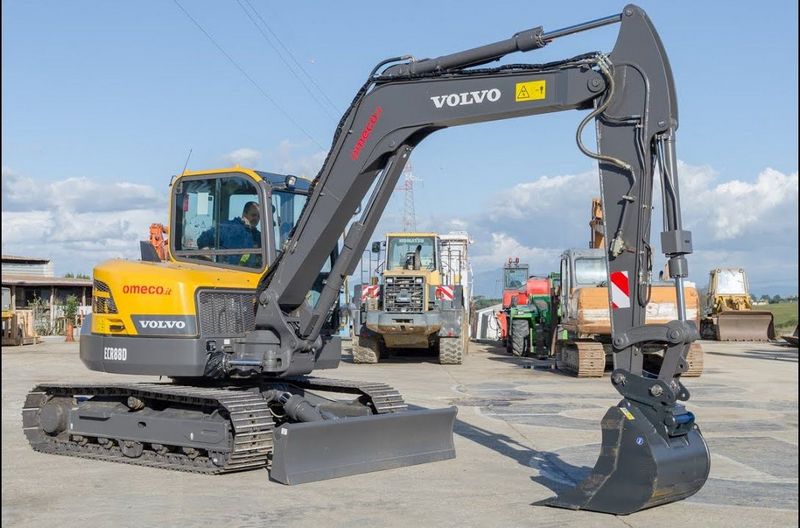

Volvo ECR88D
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 22.28 ft in (6790 mm) |
| Max Vertical Wall Digging Depth | 9.26 ft in (2820 mm) |
| Max Digging Depth | 13.55 ft in (4130 mm) |
| Min.Front Swing Radius | 8.4 ft in (2560 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 3.55 m, 11.8 ft in / Arm - 1.7 m, 5.7 ft in |
| Max Digging Reach | 22.87 ft in (6970 mm) |
| Max Digging Reach On Ground | 22.31 ft in (6800 mm) |
| Max.Dumping Height | 16.28 ft in (4960 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 23.13 ft in (7050 mm) |
| Max Vertical Wall Digging Depth | 10.5 ft in (3200 mm) |
| Max Digging Depth | 14.87 ft in (4530 mm) |
| Max Digging Reach On Ground | 23.56 ft in (7180 mm) |
| Min.Front Swing Radius | 8.67 ft in (2640 mm) |
| Max Digging Reach | 24.12 ft in (7350 mm) |
| Max.Dumping Height | 17.13 ft in (5220 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 3.55 m, 11.8 ft in / Arm - 2.1 m, 6.11 ft in |
Dimensions
| Counterweight Clearance | 2.5 ft in (760 mm) |
| Height To Top Of Cab | 8.91 ft in (2715 mm) |
| Tail Swing Radius | 4.24 ft in (1290 mm) |
| Track Gauge | 6.07 ft in (1850 mm) |
| Tumbler Length | 7.22 ft in (2200 mm) |
| Minimum Ground Clearance | 15.95 in (405 mm) |
| Overall Length | 20.9 ft in (6370 mm) |
| Overall Width | 7.55 ft in (2300 mm) |
| Overall Width -Upper Structure | 7.26 ft in (2210 mm) |
| Shoe Width | 1.48 ft in (450 mm) |
| Track Length | 111.42 in (2830 mm) |
| Boom Swing | 70 degrees |
| Overall Height Of Engine Hood | 3.88 ft in (1180 mm) |
Undercarriage
| Number Of Bottom Rollers Per Side | 2X5 |
| Number Of Top Rollers Per Side | 2X1 |
| Drawbar Pull | 14612.58 lb (65 kN) |
| Shoe Width - Steel | 450/600 in, (177/236 mm) |
| Shoe Width – Rubber | 17.72 in (450 mm) |
| Link Pitch | 6.07 in (154 mm) |
Electrical System
| Voltage | 12V V |
| Batteries | 1 |
| Battery | 100(Ah) |
Engine
| Max Power | 2000 rpm |
| Fuel Tank | 7.7 gal (29 L) |
| Number Of Cylinders | 4 |
| Engine Model | D2.6H |
| Rated Engine Speed | 1300 rpm |
| Gross Power | 55 hp (41.1 kw) |
| Net Power | 58 hp (43.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 159.9 cu in (2.7 L) |
| Max Torque | 162.3 lb ft (220 Nm) |
| Bore | 0.2 in (3.4 mm) |
| Stroke | 0.2 in (4.3 mm) |
Capacities
| Travel Reduction | 0.9 gal (3.2 L) |
| Hydraulic Tank | 5.9 gal (22 L) |
| Hydraulic System | 9.8 gal (37 L) |
| Engine Oil | 2.7 gal (10 L) |
Operational
| Operating Weight | 6012 lb (2727 kg) |
| Fuel Capacity | 13 gal (49 L) |
Performance
| Gradeability | 35 % |
Swing Mechanism
| Swing Speed | 9.3 rpm |
| Swing Torque | 16890 lb ft (22899.8 Nm) |
Loader
| Breakout Force | 12860 (IBF) |
Buckets
| Reference Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic System
| Main Pump - Maximum Flow | 44.7 gal/min (169 L/min) |
| Pilot Pump - Maximum Flow | 3.7 gal/min (14 L/min) |
| Implement | 618.5 psi (4264 kPa) |
| Travel Circuit | 618.5 psi (4264 kPa) |
| Hydraulic System | 140 L, (37 gal) |
| Swing Circuit | 515.4 psi (3553 kPa) |
| Pilot Circuit | 3.4 psi (23.5 kPa) |
