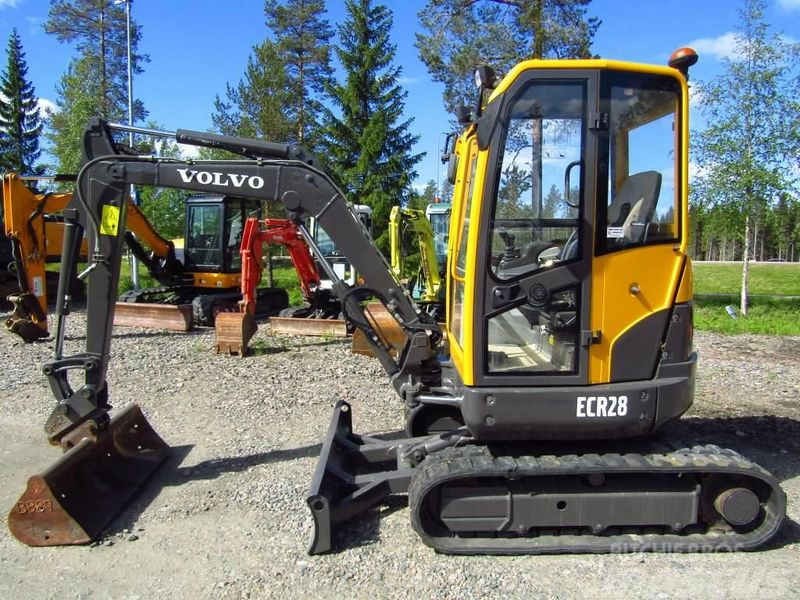

Volvo ECR28
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.13 ft in (4000 mm) |
| Max Cutting Height | 12.96 ft in (3950 mm) |
| Shipping Height Of Unit | 8.01 ft in (2440 mm) |
| Max Loading Height | 9.32 ft in (2840 mm) |
| Max Reach Along Ground | 14.21 ft in (4330 mm) |
| Max Vertical Wall Digging Depth | 5.98 ft in (1820 mm) |
| Max Digging Depth | 7.81 ft in (2380 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6'6.7" (2000mm)/Stick 3'5.3" (1050mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 13.42 ft in (4090 mm) |
| Shipping Length Of Unit | 13.13 ft in (4000 mm) |
| Max Loading Height | 9.75 ft in (2970 mm) |
| Shipping Height Of Unit | 7.35 ft in (2240 mm) |
| Max Reach Along Ground | 15.03 ft in (4580 mm) |
| Max Vertical Wall Digging Depth | 6.76 ft in (2060 mm) |
| Max Digging Depth | 8.63 ft in (2630 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6'6.7" (2000mm)/Stick 4'3.2" (1300mm) |
Dimensions
| Width To Outside Of Tracks | 4.93 ft in (1500 mm) |
| Length Of Track On Ground | 4.73 ft in (1440 mm) |
| Ground Clearance | 0.92 ft in (280 mm) |
| Height To Top Of Cab | 8.01 ft in (2440 mm) |
| Tail Swing Radius | 2.47 ft in (750 mm) |
| Removal Counterweight Clearance | 1.88 ft in (570 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Track Gauge | 4.11 ft in (1250 mm) |
| Number Of Track Rollers Per Side | 3 |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 4.8 psi (33.1 kPa) |
| Max Travel Speed | 2.4 mph (3.87 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2244 |
| Engine Model | D1.2 |
| Gross Power | 19.3 hp (14.4 kw) |
| Net Power | 18.3 hp (13.7 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 68 cu in (1.2 L) |
| Max Torque | 48.4 lb ft (65.7 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 6012 lb (2727 kg) |
| Fuel Capacity | 13 gal (49 L) |
| Cooling System Fluid Capacity | 1.1 gal (4 L) |
| Hydraulic System Fluid Capacity | 9.8 gal (37 L) |
| Engine Oil Capacity | 0.9 gal (3.3 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3046 psi (21001.5 kPa) |
| Hydraulic Pump Flow Capacity | 17 gal/min (64.4 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.1 m3) |
