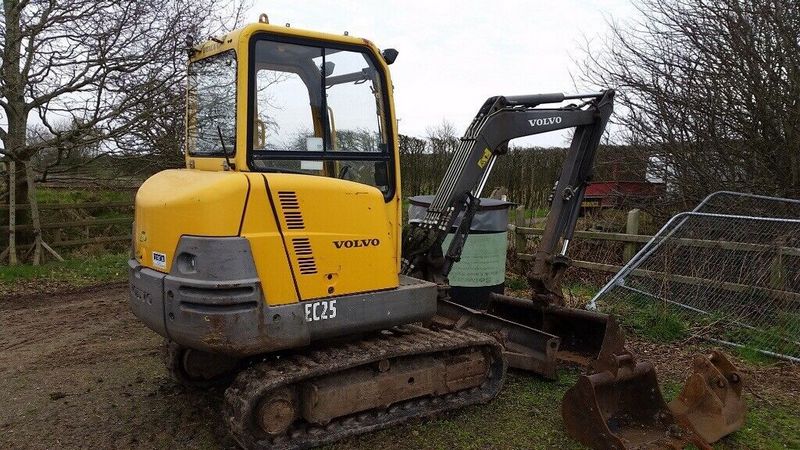

Volvo EC25
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.85 ft in (4220 mm) |
| Max Cutting Height | 14.21 ft in (4330 mm) |
| Shipping Height Of Unit | 7.85 ft in (2390 mm) |
| Max Loading Height | 10.27 ft in (3130 mm) |
| Max Reach Along Ground | 14.64 ft in (4460 mm) |
| Max Vertical Wall Digging Depth | 6.57 ft in (2000 mm) |
| Max Digging Depth | 8.27 ft in (2520 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6'11" (2100mm)/Stick 3'11" (1200mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 14.83 ft in (4520 mm) |
| Shipping Length Of Unit | 13.85 ft in (4220 mm) |
| Max Loading Height | 10.9 ft in (3320 mm) |
| Shipping Height Of Unit | 7.85 ft in (2390 mm) |
| Max Reach Along Ground | 15.59 ft in (4750 mm) |
| Max Vertical Wall Digging Depth | 7.52 ft in (2290 mm) |
| Max Digging Depth | 7.52 ft in (2290 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6'11" (2100mm)/Stick 4'11" (1500mm) |
Dimensions
| Width To Outside Of Tracks | 4.86 ft in (1480 mm) |
| Length Of Track On Ground | 4.73 ft in (1440 mm) |
| Ground Clearance | 0.92 ft in (280 mm) |
| Height To Top Of Cab | 7.85 ft in (2390 mm) |
| Tail Swing Radius | 4.17 ft in (1270 mm) |
| Removal Counterweight Clearance | 1.88 ft in (570 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 3.88 ft in (1180 mm) |
| Number Of Track Rollers Per Side | 3 |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 4.3 psi (29.65 kPa) |
| Max Travel Speed | 2.3 mph (3.71 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | S3L2 |
| Gross Power | 26.8 hp (20 kw) |
| Net Power | 22.9 hp (17.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 80 cu in (1.4 L) |
| Max Torque | 56.8 lb ft (77 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 6152 lb (2790.6 kg) |
| Fuel Capacity | 13 gal (49 L) |
| Cooling System Fluid Capacity | 1.6 gal (6 L) |
| Hydraulic System Fluid Capacity | 12.3 gal (46.5 L) |
| Engine Oil Capacity | 1.4 gal (5.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 3335 psi (22994 kPa) |
| Hydraulic Pump Flow Capacity | 16.4 gal/min (62.1 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.2 m3) |
