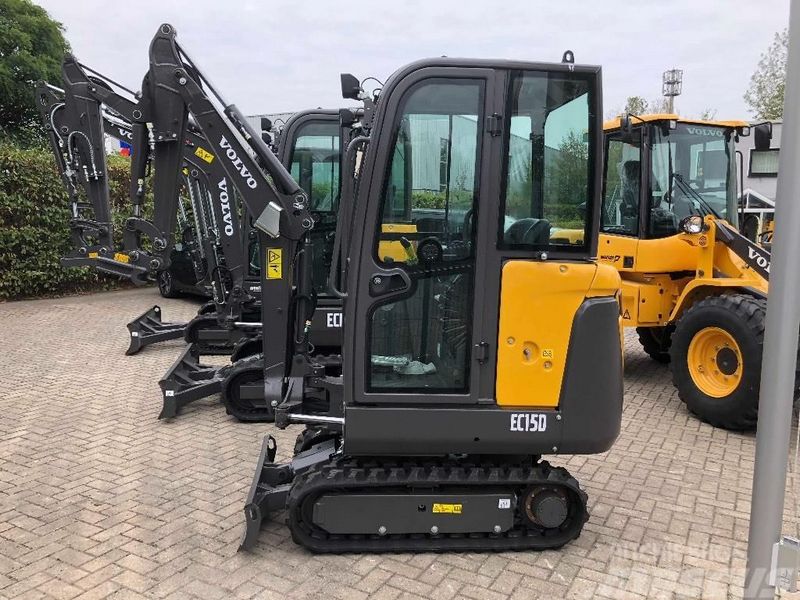

Volvo EC15
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.98 ft in (3650 mm) |
| Max Cutting Height | 11.19 ft in (3410 mm) |
| Shipping Height Of Unit | 7.39 ft in (2250 mm) |
| Max Loading Height | 8.14 ft in (2480 mm) |
| Max Reach Along Ground | 4.93 ft in (1500 mm) |
| Max Vertical Wall Digging Depth | 4.93 ft in (1500 mm) |
| Max Digging Depth | 7.22 ft in (2200 mm) |
| Boom/Stick Option (Hex) 1 | Boom 5'9" (1750mm)/Stick 2'11" (900mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 11.65 ft in (3550 mm) |
| Shipping Length Of Unit | 11.98 ft in (3650 mm) |
| Max Loading Height | 8.6 ft in (2620 mm) |
| Shipping Height Of Unit | 7.39 ft in (2250 mm) |
| Max Reach Along Ground | 5.71 ft in (1740 mm) |
| Max Vertical Wall Digging Depth | 5.71 ft in (1740 mm) |
| Max Digging Depth | 8.04 ft in (2450 mm) |
| Boom/Stick Option (Hex) 2 | Boom 5'9" (1750mm)/Stick 3'9" (1150mm) |
Dimensions
| Width To Outside Of Tracks | 3.22 ft in (980 mm) |
| Length Of Track On Ground | 3.43 ft in (1045 mm) |
| Ground Clearance | 0.69 ft in (210 mm) |
| Height To Top Of Cab | 7.39 ft in (2250 mm) |
| Tail Swing Radius | 3.81 ft in (1160 mm) |
| Removal Counterweight Clearance | 1.48 ft in (450 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 2.5 ft in (760 mm) |
| Max Travel Speed | 1.25 mph (2 km/h) |
| Ground Pressure | 4.41 psi (30.34 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | L3E |
| Gross Power | 18.8 hp (14 kw) |
| Net Power | 15.2 hp (11.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 58 cu in (1 L) |
| Max Torque | 39.9 lb ft (54 Nm) |
| Torque Measured @ | 1850 rpm |
Operational
| Operating Weight | 3450.3 lb (1565 kg) |
| Fuel Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 1.2 gal (4.5 L) |
| Hydraulic System Fluid Capacity | 6.1 gal (23 L) |
| Engine Oil Capacity | 1 gal (3.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 2465 psi (16995.6 kPa) |
| Hydraulic Pump Flow Capacity | 8.5 gal/min (32 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
