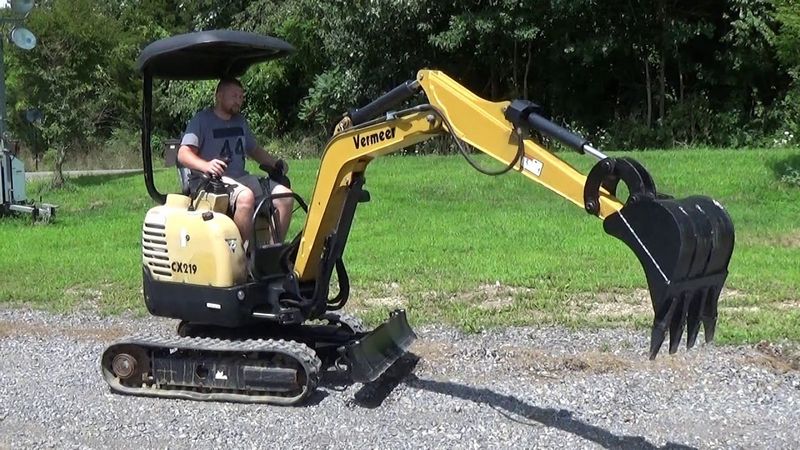

Vermeer CX219z
Browse All Vermeer or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 11.42 ft in (3480 mm) |
| Shipping Height Of Unit | 7.85 ft in (2390 mm) |
| Max Loading Height | 7.85 ft in (2390 mm) |
| Max Reach Along Ground | 12.5 ft in (3810 mm) |
| Max Vertical Wall Digging Depth | 5.25 ft in (1600 mm) |
| Max Digging Depth | 8.24 ft in (2510 mm) |
| Boom/Stick Option (Hex) 1 | Boom / Stick |
Dimensions
| Width To Outside Of Tracks | 4.27 ft in (1300 mm) |
| Length Of Track On Ground | 3.68 ft in (1120 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 7.85 ft in (2390 mm) |
| Tail Swing Radius | 2.1 ft in (640 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 3.52 ft in (1070 mm) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Ground Pressure | 3.8 psi (26.21 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D 722-E Diesel |
| Gross Power | 14.3 hp (10.7 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 43.8 cu in (0.8 L) |
Operational
| Operating Weight | 4188.8 lb (1900 kg) |
| Fuel Capacity | 5.3 gal (20 L) |
| Hydraulic System Fluid Capacity | 5.3 gal (20.1 L) |
| Hydraulic Pump Flow Capacity | 9.6 gal/min (36 L/min) |
