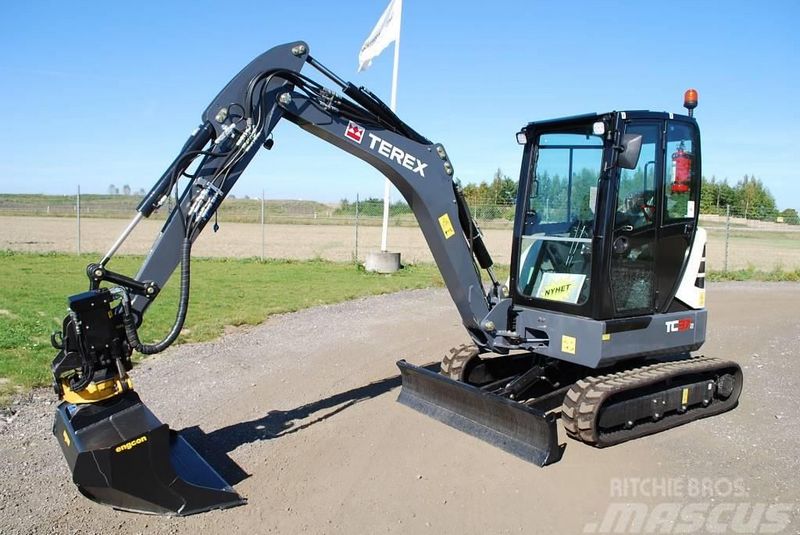

Terex TC37
Browse All Terex or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 14.87 ft in (4530 mm) |
| Max Loading Height | 10.04 ft in (3060 mm) |
| Max Digging Depth | 10.44 ft in (3180 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ dipperstick 63'' (1600mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 15.23 ft in (4640 mm) |
| Max Loading Height | 10.47 ft in (3190 mm) |
| Max Digging Depth | 11.09 ft in (3380 mm) |
| Boom/Stick Option (Hex) 2 | boom w/ dipperstick 71'' (1800mm) |
Dimensions
| Width To Outside Of Tracks | 5.91 ft in (1800 mm) |
| Ground Clearance | 0.99 ft in (300 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Tail Swing Radius | 2.96 ft in (900 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 4.93 ft in (1500 mm) |
| Drawbar Pull | 6975 lb (31.03 kN) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
| Ground Pressure | 4.1 psi (28.27 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | S4L2 |
| Net Power | 32.5 hp (24.3 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 105 cu in (1.8 L) |
| Max Torque | 77 lb ft (104.4 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 8047 lb (3650.1 kg) |
| Fuel Capacity | 17.2 gal (65 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Operating Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 3625 psi (24993.5 kPa) |
| Hydraulic Pump Flow Capacity | 25.1 gal/min (95 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
