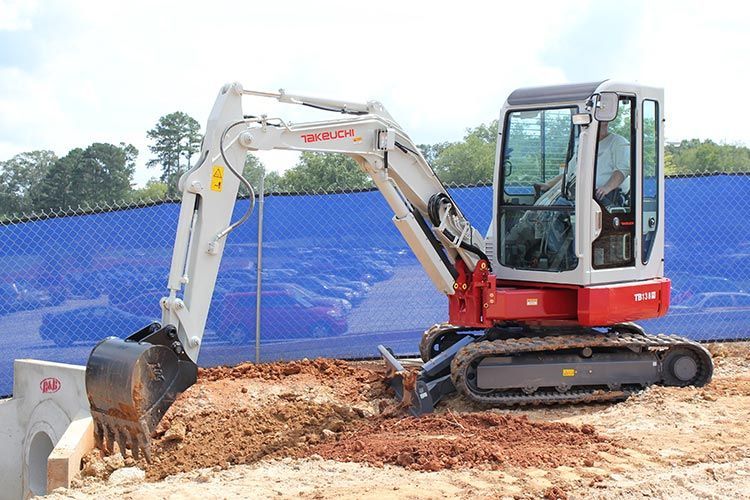

Takeuchi TB138FR
Browse All Takeuchi or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 15.67 ft in (4776.22 mm) |
| Max Loading Height | 12.42 ft in (3785.62 mm) |
| Max Reach Along Ground | 17.75 ft in (5410.2 mm) |
| Max Vertical Wall Digging Depth | 8.58 ft in (2615.19 mm) |
| Max Digging Depth | 11.25 ft in (3429 mm) |
Dimensions
| Width To Outside Of Tracks | 5.72 ft in (1743.46 mm) |
| Length Of Track On Ground | 5.42 ft in (1652.02 mm) |
| Ground Clearance | 0.96 ft in (292.61 mm) |
| Height To Top Of Cab | 8.42 ft in (2566.42 mm) |
| Tail Swing Radius | 3.17 ft in (966.22 mm) |
Undercarriage
| Shoe Size | 14 in (355.6 mm) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 4 |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
| Ground Pressure | 4.34 psi (29.93 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV88-XTBZ |
| Gross Power | 27.8 hp (20.8 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 100 cu in (1.7 L) |
| Max Torque | 80 lb ft (108.5 Nm) |
| Torque Measured @ | 1380 rpm |
Operational
| Operating Weight | 8316 lb (3772.1 kg) |
| Fuel Capacity | 10.6 gal (40.2 L) |
| Cooling System Fluid Capacity | 1.4 gal (5.3 L) |
| Hydraulic System Fluid Capacity | 18 gal (68.2 L) |
| Engine Oil Capacity | 1.2 gal (4.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 64 amps |
| Hydraulic System Relief Valve Pressure | 3000 psi (20684.3 kPa) |
| Hydraulic Pump Flow Capacity | 19.8 gal/min (75 L/min) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
