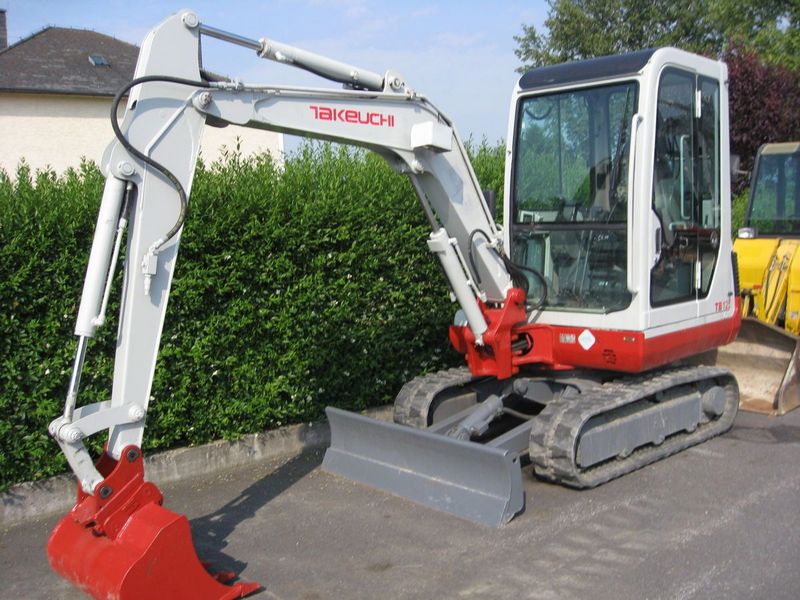

Takeuchi TB125
Browse All Takeuchi or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.83 ft in (4520.19 mm) |
| Max Loading Height | 10.42 ft in (3176.02 mm) |
| Max Reach Along Ground | 15.5 ft in (4724.4 mm) |
| Max Vertical Wall Digging Depth | 7.42 ft in (2261.62 mm) |
| Max Digging Depth | 9.5 ft in (2895.6 mm) |
Dimensions
| Width To Outside Of Tracks | 4.75 ft in (1447.8 mm) |
| Length Of Track On Ground | 4.91 ft in (1493.52 mm) |
| Ground Clearance | 0.99 ft in (299.71 mm) |
| Height To Top Of Cab | 8 ft in (2438.4 mm) |
| Tail Swing Radius | 4.25 ft in (1295.41 mm) |
| Removal Counterweight Clearance | 1 ft in (304.8 mm) |
Undercarriage
| Shoe Size | 12 in (304.8 mm) |
| Max Travel Speed | 3 mph (4.83 km/h) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 3 |
| Ground Pressure | 4.1 psi (28.27 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV82-QTB1 |
| Gross Power | 22.5 hp (16.8 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 81.2 cu in (1.4 L) |
| Max Torque | 62 lb ft (84.1 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 6165 lb (2796.4 kg) |
| Fuel Capacity | 13.4 gal (50.8 L) |
| Cooling System Fluid Capacity | 1 gal (3.7 L) |
| Hydraulic System Fluid Capacity | 19.6 gal (74.2 L) |
| Engine Oil Capacity | 1 gal (3.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 2987 psi (20594.7 kPa) |
| Hydraulic Pump Flow Capacity | 15.4 gal/min (58.3 L/min) |
Swing Mechanism
| Swing Speed | 9.6 rpm |
