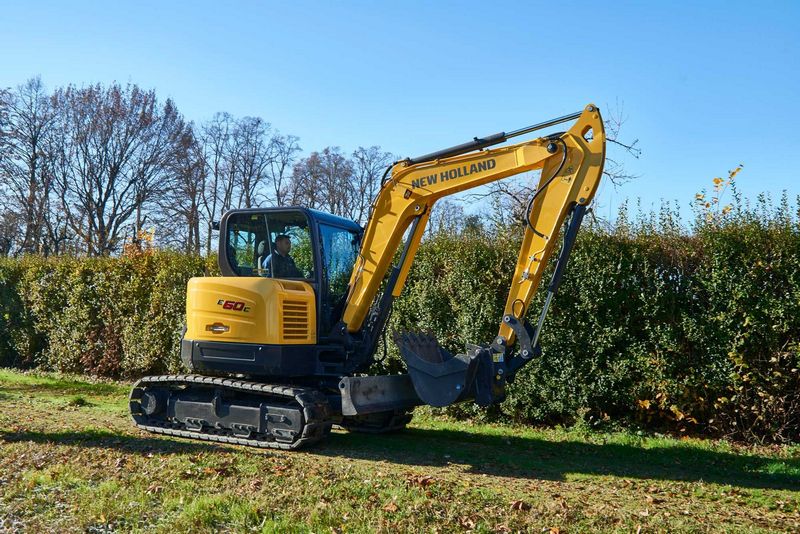

New Holland E60C
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 10 ft in (3048 mm) |
| Max Digging Depth | 11.9 ft in (3627.12 mm) |
| Overall Reach Height | 18.8 ft in (5730.24 mm) |
| Max Digging Reach | 25.5 ft in (7772.4 mm) |
| Max Digging Reach On Ground | 24.11 ft in (7348.73 mm) |
| Max.Dumping Height | 12.1 ft in (3688.08 mm) |
| Arm Digging Force | 5950 lb (26.47 kN) |
| Bucket Digging Force | 9190 lb (40.88 kN) |
Dimensions
| Tail Swing Radius | 3.55 ft in (1080 mm) |
| Upper Structure Ground Clearance | 2.17 ft in (660 mm) |
| Center To Center – Idler To Sprocket | 6.53 ft in (1990 mm) |
| Minimum Ground Clearance | 14.97 in (380 mm) |
| Overall Height | 8.37 ft in (2550 mm) |
| Overall Track Length | 8.31 ft in (2530 mm) |
| Overall Track Width | 6.53 ft in (1990 mm) |
| Overall Transport Length | 220.48 in (5600 mm) |
| Track Shoe Width | 1.25 ft in (380 mm) |
| Arm (Standard Length) | 4.86 ft in (1.48 m) |
Engine
| Emissions Certification | Tier 4 Final |
| Fuel | Diesel |
| Cylinders | 4 |
| Gross Horsepower – Sae J1995 | 64.7 hp (48.3 kw) |
| Fuel Injection | Mechanical with electronic governor |
| Cooling Method | Water-cooled |
| Engine Model | Yanmar 4TNV98C |
| Displacement | 203 cu in (3.4 L) |
Drive Train
| Travel Speeds - 1st | 1.4 mph (2.3 km/h) |
| Travel Speeds - 2nd | 2.5 mph (4.1 km/h) |
| Maximum Traction Force | 11690.1 lb (52 kN) |
| Gradeability | 35 degrees |
Capacities
| Engine Oil W/ Filter Change | 3.1 gal (11.6 L) |
| Hydraulic Tank - Refill Capacity | 15.9 gal (60 L) |
| Hydraulic Tank - Total System | 29.1 gal (110 L) |
| Fuel Tank | 21.7 gal (82 L) |
| Radiator | 3 gal (11 L) |
Performance
| Maximum Dig Radius | 242.2 in (6150 mm) |
| Dig Radius At Groundline | 236.7 in (6010 mm) |
| Maximum Dig Depth | 140.6 in (3570 mm) |
| Vertical Straight Wall Dig Depth | 119.7 in (3040 mm) |
Blade
| Backfill Blade Height | 13.8 in (350 mm) |
| Backfill Blade Width | 78.4 in (1990 mm) |
| Backfill Blade Dig Depth | 27.6 in (700 mm) |
| Backfill Blade Rise Above Ground | 7.9 in (200 mm) |
