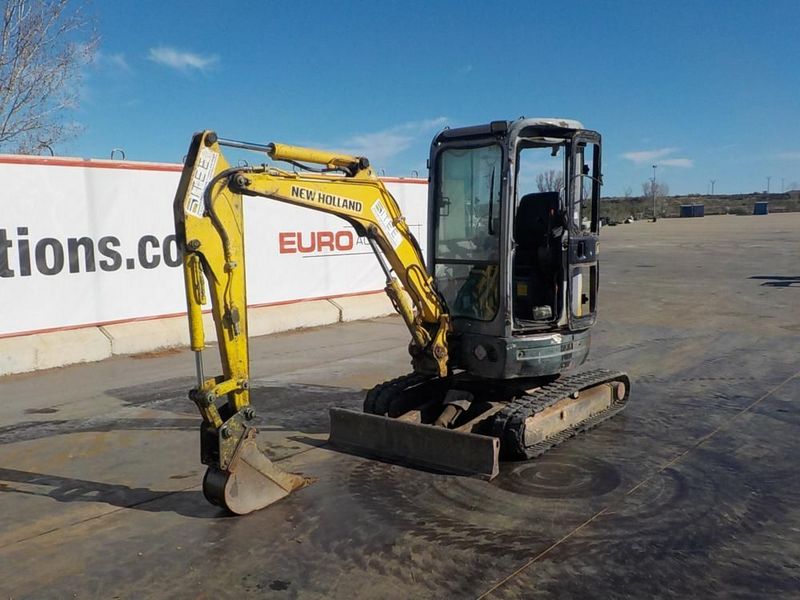

New Holland E27
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.58 ft in (4139.19 mm) |
| Max Cutting Height | 14.67 ft in (4471.42 mm) |
| Shipping Height Of Unit | 8.17 ft in (2490.22 mm) |
| Max Reach Along Ground | 14.83 ft in (4520.19 mm) |
| Max Vertical Wall Digging Depth | 7.58 ft in (2310.39 mm) |
| Max Digging Depth | 8.33 ft in (2538.99 mm) |
| Boom/Stick Option (Hex) 1 | Mono Boom 3'8" |
Dimensions
| Width To Outside Of Tracks | 3.92 ft in (1194.82 mm) |
| Length Of Track On Ground | 6.5 ft in (1981.2 mm) |
| Ground Clearance | 0.83 ft in (252.99 mm) |
| Height To Top Of Cab | 8.17 ft in (2490.22 mm) |
| Tail Swing Radius | 2.47 ft in (750 mm) |
| Removal Counterweight Clearance | 1.67 ft in (509.02 mm) |
Undercarriage
| Shoe Size | 9.81 in (248.92 mm) |
| Track Gauge | 4.11 ft in (1250 mm) |
| Max Travel Speed | 2.5 mph (4.03 km/h) |
| Ground Pressure | 4.06 psi (28 kPa) |
| Drawbar Pull | 6368 lb (28.33 kN) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV82A-SYB |
| Net Power | 21.3 hp (15.9 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 81.5 cu in (1.4 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 5557 lb (2520.7 kg) |
| Fuel Capacity | 7.4 gal (28.1 L) |
| Hydraulic System Fluid Capacity | 6.7 gal (25 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3336 psi (23000.9 kPa) |
| Hydraulic Pump Flow Capacity | 10.8 gal/min (40.9 L/min) |
Swing Mechanism
| Swing Speed | 8.7 rpm |
| Swing Torque | 442.5 lb ft (- Nm) |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
