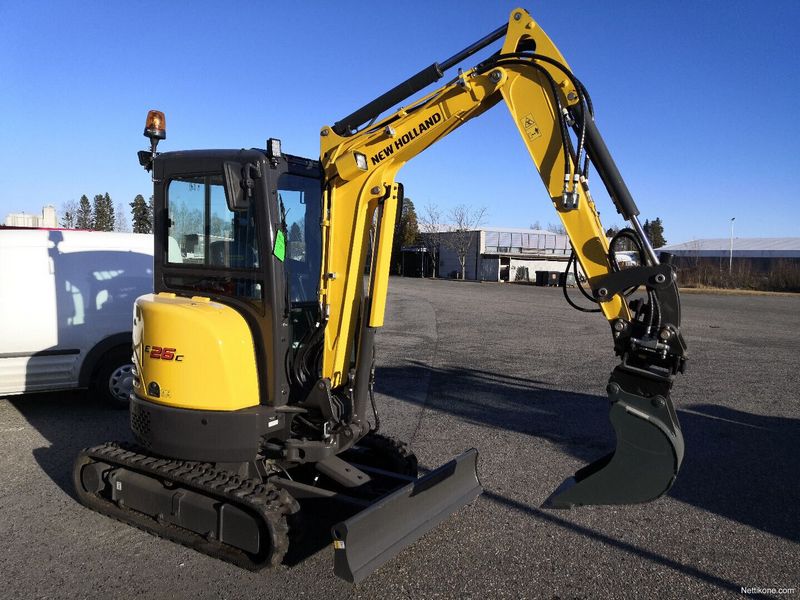

New Holland E26C
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 4.91 ft in (1493.52 mm) |
| Max Digging Depth | 7.11 ft in (2167.13 mm) |
| Max Digging Reach | 14.8 ft in (4511.04 mm) |
| Max Digging Reach On Ground | 14.3 ft in (4358.65 mm) |
| Bucket Digging Force | 4740 lb (21.09 kN) |
| Overall Reach Height | 13.7 ft in (4175.76 mm) |
| Arm Digging Force | 3280 lb (14.6 kN) |
| Max.Dumping Height | 9.7 ft in (2956.56 mm) |
Dimensions
| Tail Swing Radius | 2.55 ft in (775 mm) |
| Track Shoe Width | 0.83 ft in (250 mm) |
| Arm (Standard Length) | 3.68 ft in (1.13 m) |
| Upper Structure Ground Clearance | 1.68 ft in (510 mm) |
| Boom Swing | 75 degrees |
| Center To Center – Idler To Sprocket | 4.89 ft in (1490 mm) |
| Minimum Ground Clearance | 11.42 in (290 mm) |
| Operating Weight(Canpoy) | 5522.58 lb (2505 kg) |
| Overall Height | 8.21 ft in (2500 mm) |
| Overall Track Length | 6.27 ft in (1910 mm) |
| Overall Track Width | 4.93 ft in (1500 mm) |
| Overall Transport Length | 158.67 in (4030 mm) |
Engine
| Emissions Certification | Tier 4 Final |
| Fuel | Diesel |
| Cylinders | 3 |
| Gross Horsepower – Sae J1995 | 24.8 hp (18.5 kw) |
| Fuel Injection | Mechanical |
| Cooling Method | Water-cooled |
| Engine Model | Kubota D1305 |
| Displacement | 77 cu in (1.3 L) |
Drive Train
| Travel Speeds - 1st | 1.5 mph (2.5 km/h) |
| Travel Speeds - 2nd | 2.7 mph (4.4 km/h) |
| Maximum Traction Force | 5283.1 lb (23.5 kN) |
| Gradeability | 30 degrees |
| Ground Pressure | 4.3 psi (29.7 kPa) |
Capacities
| Engine Oil W/ Filter Change | 1.6 gal (5.7 L) |
| Hydraulic Tank - Refill Capacity | 7.2 gal (27 L) |
| Hydraulic Tank - Total System | 14.6 gal (55 L) |
| Fuel Tank | 8 gal (30 L) |
| Radiator | 1.4 gal (5 L) |
Performance
| Maximum Dig Radius | 176.4 in (4480 mm) |
| Dig Radius At Groundline | 170.9 in (4340 mm) |
| Maximum Dig Depth | 95.3 in (2420 mm) |
| Vertical Straight Wall Dig Depth | 57.5 in (1460 mm) |
Blade
| Backfill Blade Height | 11.9 in (300 mm) |
| Backfill Blade Width | 59.1 in (1500 mm) |
| Backfill Blade Dig Depth | 15 in (380 mm) |
| Backfill Blade Rise Above Ground | 13 in (330 mm) |
