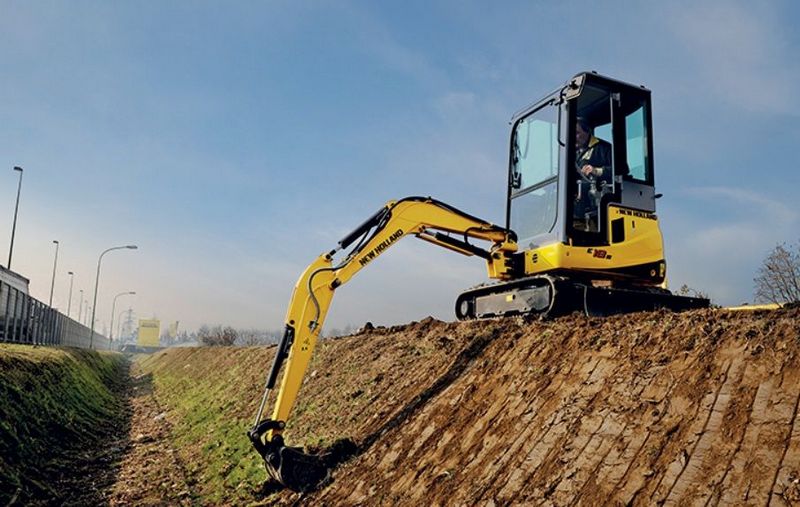

New Holland E18B
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.25 ft in (3429 mm) |
| Max Cutting Height | 12.07 ft in (3678.94 mm) |
| Shipping Height Of Unit | 7.5 ft in (2286 mm) |
| Max Loading Height | 8.67 ft in (2642.62 mm) |
| Max Reach Along Ground | 12.42 ft in (3785.62 mm) |
| Max Vertical Wall Digging Depth | 5.42 ft in (1652.02 mm) |
| Max Digging Depth | 7.07 ft in (2154.94 mm) |
| Boom/Stick Option (Hex) 1 | Boom 5'9" |
Dimensions
| Width To Outside Of Tracks | 4.33 ft in (1319.79 mm) |
| Length Of Track On Ground | 5.07 ft in (1545.34 mm) |
| Ground Clearance | 0.6 ft in (180 mm) |
| Height To Top Of Cab | 7.5 ft in (2286 mm) |
| Tail Swing Radius | 2.17 ft in (661.42 mm) |
| Removal Counterweight Clearance | 1.5 ft in (457.2 mm) |
Undercarriage
| Shoe Size | 0.9 in (230 mm) |
| Track Gauge | 2.5 ft in (760 mm) |
| Drawbar Pull | 4474 lb (19.91 kN) |
| Max Travel Speed | 2.5 mph (4.03 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | L3E-W231KBS |
| Net Power | 15.2 hp (11.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 58.1 cu in (1 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 3638 lb (1650.2 kg) |
| Fuel Capacity | 5.9 gal (22 L) |
| Hydraulic System Fluid Capacity | 4 gal (15 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 2988 psi (20601.6 kPa) |
| Hydraulic Pump Flow Capacity | 8.6 gal/min (32.6 L/min) |
Swing Mechanism
| Swing Speed | 8.6 rpm |
| Swing Torque | 310 lb ft (- Nm) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
