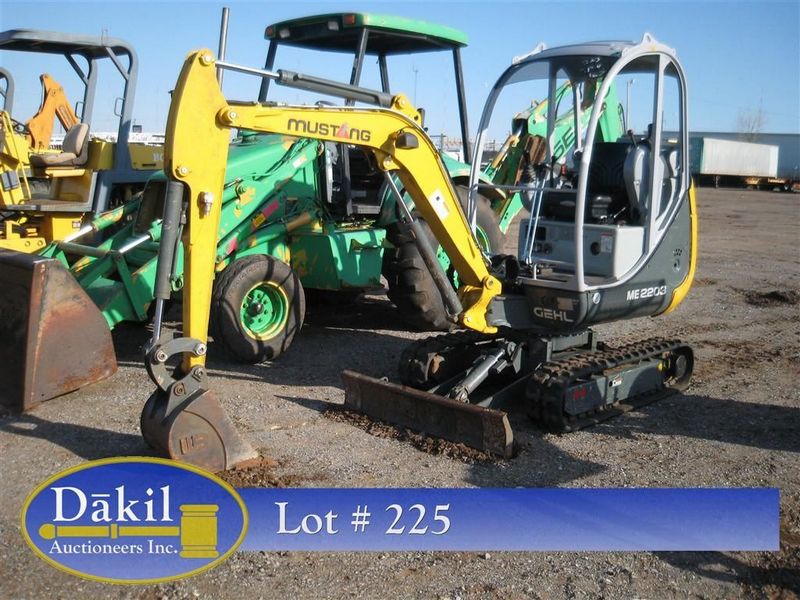

Mustang ME2203
Browse All Mustang or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.08 ft in (3988 mm) |
| Max Cutting Height | 13.33 ft in (4064 mm) |
| Shipping Height Of Unit | 7.92 ft in (2413 mm) |
| Max Loading Height | 9.17 ft in (2794 mm) |
| Max Reach Along Ground | 13.17 ft in (4013 mm) |
| Max Vertical Wall Digging Depth | 5.33 ft in (1626 mm) |
| Max Digging Depth | 8.08 ft in (2464 mm) |
| Boom/Stick Option (Hex) 1 | Standard Arm Length 3ft.3.5in. (1049mm ) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 14 ft in (4267 mm) |
| Shipping Length Of Unit | 13.08 ft in (3988 mm) |
| Max Loading Height | 9.58 ft in (2921 mm) |
| Shipping Height Of Unit | 7.92 ft in (2413 mm) |
| Max Reach Along Ground | 13.83 ft in (4216 mm) |
| Max Vertical Wall Digging Depth | 6 ft in (1829 mm) |
| Max Digging Depth | 8.58 ft in (2616 mm) |
| Boom/Stick Option (Hex) 2 | Optional Arm Length 4ft.1.2in. (1250mm ) |
Dimensions
| Width To Outside Of Tracks | 9.5 ft in (2896 mm) |
| Length Of Track On Ground | 4.33 ft in (1321 mm) |
| Ground Clearance | 0.6 ft in (180 mm) |
| Height To Top Of Cab | 7.92 ft in (2413 mm) |
| Tail Swing Radius | 3.75 ft in (1161 mm) |
Undercarriage
| Shoe Size | 9 in (249 mm) |
| Track Gauge | 9.34 ft in (2845 mm) |
| Number Of Track Rollers Per Side | 4 |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 2.4 mph (3.8 km/h) |
| Drawbar Pull | 6570 lb (29.2 kN) |
| Ground Pressure | 4 psi (27.58 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV76-SNS |
| Gross Power | 26 hp (19 kw) |
| Net Power | 18 hp (12 kw) |
| Displacement | 68.1 cu in (1.1 L) |
Operational
| Operating Weight | 4447 lb (2017 kg) |
| Hydraulic System Relief Valve Pressure | 2900 psi (19994.8 kPa) |
| Hydraulic Pump Flow Capacity | 18.7 gal/min (70.7 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
| Swing Torque | 4070 lb ft (5518.2 Nm) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
