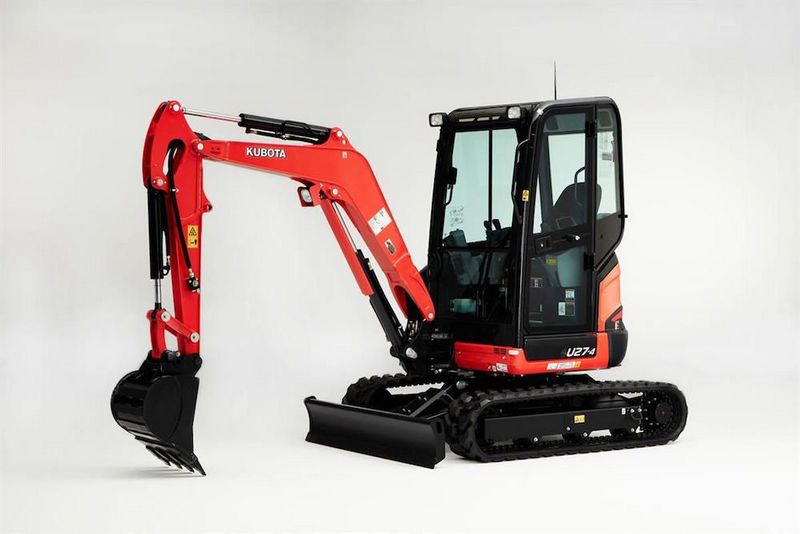

Kubota U27-4HG
Browse All Kubota or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 7.68 ft in (2340 mm) |
| Max Digging Depth | 9.42 ft in (2870 mm) |
| Mximum Dig Radius | 188.59 in (4790 mm) |
| Max.Dumping Height | 9.98 ft in (3040 mm) |
| Max Digging Height | 14.51 ft in (4420 mm) |
Dimensions
| Ground Clearance | 1.01 ft in (307 mm) |
| Height To Top Of Cab | 7.88 ft in (2400 mm) |
| Tail Swing Radius | 2.6 ft in (790 mm) |
| Overall Height | 7.94 ft in (2420 mm) |
| Overall Length | 13.46 ft in (4100 mm) |
| Overall Width | 59.06 in (1500 mm) |
| Crawler Length | 6.53 ft in (1990 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Ground Pressure | 3.44 psi (23.7 kPa) |
Engine
| Engine Make | Kubota |
| Engine Model | D1105-BH |
| Gross Power | 20.8 hp (15.6 kw) |
| Net Power | 20 hp (15 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 4180.2 cu in (68.5 L) |
| Model Name | U27-4 |
Operational
| Auxiliary Hydraulic Flow | 12.7 gal/min (48 L/min) |
| Travel Speed, Low Range | 1.7 mph (2.6 km/h) |
| Travel Speed, High Range | 2.7 mph (4.3 km/h) |
| Fuel Capacity | 8.8 gal (33 L) |
| Hydraulic System Fluid Capacity | 9.8 gal (37 L) |
| Hydraulic Pump Flow Capacity | 5.9 gal/min (22 L/min) |
Swing Mechanism
| Swing Speed | 9.8 rpm |
Blade
| Maximum Drop Below Ground | 1.1 ft in (320 mm) |
| Blade Lift Height | 14.2 in (360 mm) |
Boom
| Boom Swing Left | 75 degrees |
| Boom Swing Right | 55 degrees |
