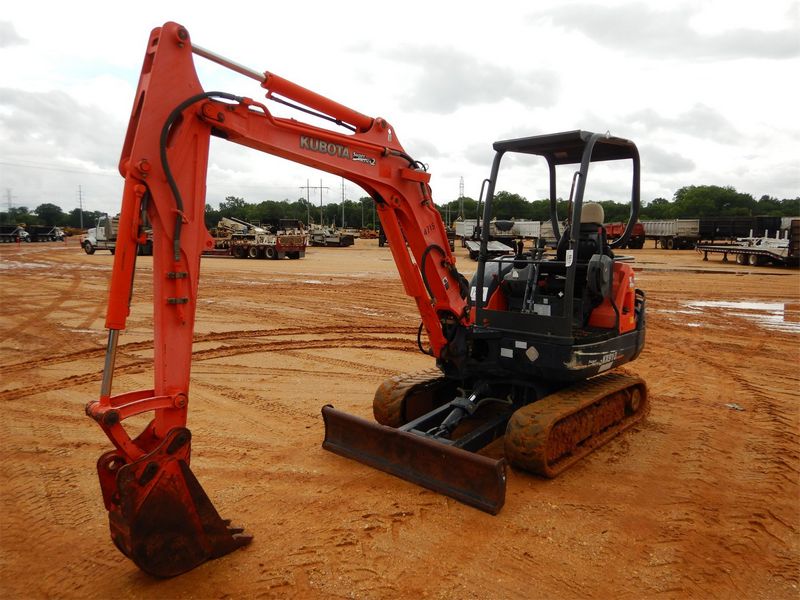

Kubota KX91-3
Browse All Kubota or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 15.62 ft in (4759.94 mm) |
| Max Cutting Height | 16.25 ft in (4953 mm) |
| Shipping Height Of Unit | 8.01 ft in (2440.93 mm) |
| Max Loading Height | 11.59 ft in (3530.59 mm) |
| Max Reach Along Ground | 16.84 ft in (5130.79 mm) |
| Max Vertical Wall Digging Depth | 7.84 ft in (2387.5 mm) |
| Max Digging Depth | 10.42 ft in (3174.98 mm) |
Dimensions
| Width To Outside Of Tracks | 5.09 ft in (1549.39 mm) |
| Ground Clearance | 0.97 ft in (294.62 mm) |
Undercarriage
| Max Travel Speed | 2.9 mph (4.67 km/h) |
| Ground Pressure | 4.5 psi (31.03 kPa) |
| Drawbar Pull | 8363 lb (8363 -) |
Engine
| Engine Make | 2334 |
| Engine Model | D1503 |
| Net Power | 28 hp (20.9 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 91.5 cu in (1.5 L) |
Operational
| Operating Weight | 7110 lb (3225.1 kg) |
| Fuel Capacity | 11.9 gal (45.1 L) |
| Hydraulic System Fluid Capacity | 9.5 gal (36 L) |
| Hydraulic Pump Flow Capacity | 27.3 gal/min (103.4 L/min) |
Swing Mechanism
| Swing Speed | 9.4 rpm |
