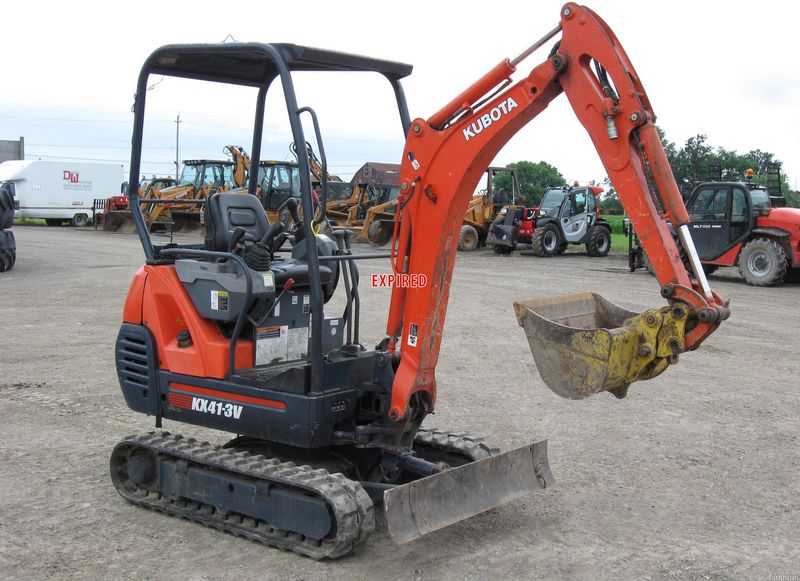

Kubota KX41-3
Browse All Kubota or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12 ft in (3657.6 mm) |
| Max Cutting Height | 11.67 ft in (3555.98 mm) |
| Shipping Height Of Unit | 7.5 ft in (2286 mm) |
| Max Loading Height | 8.1 ft in (2468.88 mm) |
| Max Reach Along Ground | 12.7 ft in (3870.96 mm) |
| Max Vertical Wall Digging Depth | 6.22 ft in (1894.82 mm) |
| Max Digging Depth | 7.81 ft in (2379.97 mm) |
Dimensions
| Width To Outside Of Tracks | 4.27 ft in (1300.46 mm) |
| Ground Clearance | 0.53 ft in (160.03 mm) |
| Height To Top Of Cab | 7.5 ft in (2286 mm) |
Undercarriage
| Max Travel Speed | 2.6 mph (4.19 km/h) |
| Ground Pressure | 3.8 psi (26.21 kPa) |
| Drawbar Pull | 2899 lb (2899 -) |
Engine
| Engine Make | 2334 |
| Engine Model | D902 |
| Net Power | 17 hp (12.7 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 54.8 cu in (0.9 L) |
Operational
| Operating Weight | 3693 lb (1675.2 kg) |
| Fuel Capacity | 5.6 gal (21.2 L) |
| Hydraulic System Fluid Capacity | 3.7 gal (14.1 L) |
Swing Mechanism
| Swing Speed | 9.1 rpm |
