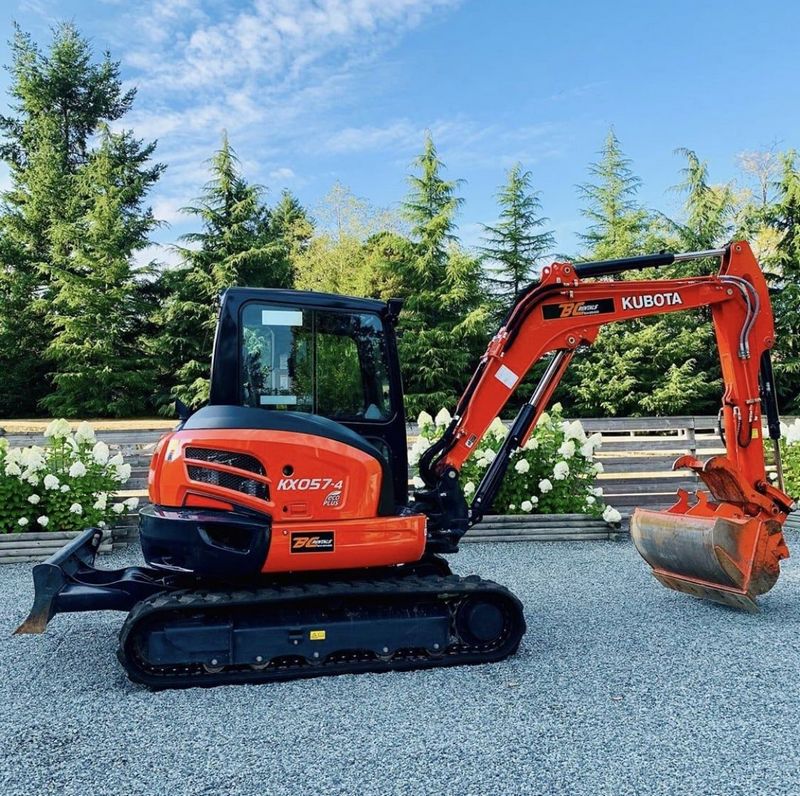

Kubota KX057-4W1
Browse All Kubota or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 5.62 ft in (1710 mm) |
| Max Digging Depth | 12.69 ft in (3865 mm) |
| Max.Dumping Height | 13.72 ft in (4180 mm) |
| Mximum Dig Radius | 245.67 in (6240 mm) |
| Max Digging Height | 18.84 ft in (5740 mm) |
Dimensions
| Ground Clearance | 1.02 ft in (310 mm) |
| Tail Swing Radius | 4.17 ft in (1270 mm) |
| Overall Height | 8.37 ft in (2550 mm) |
| Overall Length | 18.12 ft in (5520 mm) |
| Overall Width | 77.17 in (1960 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Ground Pressure | 4.51 psi (31.1 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | V2607-DI |
| Gross Power | 47.6 hp (35.5 kw) |
| Net Power | 45.2 hp (33.8 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 9739.4 cu in (159.6 L) |
| Model Name | KX057-4W(1) |
Operational
| Auxiliary Hydraulic Flow | 19.9 gal/min (75 L/min) |
| Travel Speed, Low Range | 1.8 mph (2.8 km/h) |
| Travel Speed, High Range | 3.1 mph (4.9 km/h) |
| Operating Weight Cabin | 27337.4 lb (12400 kg) |
| Auxiliary Fuel Tank | 9.8 gal (37 L) |
| Operating Weight | 26896.4 lb (12200 kg) |
| Fuel Capacity | 19.9 gal (75 L) |
| Hydraulic System Fluid Capacity | 20.9 gal (79 L) |
| Hydraulic Pump Flow Capacity | 11.9 gal/min (45 L/min) |
Swing Mechanism
| Swing Speed | 9.3 rpm |
Blade
| Maximum Drop Below Ground | 1.4 ft in (410 mm) |
| Blade Lift Height | 17.4 in (440 mm) |
| Width | 7.2 ft in (2180 mm) |
Boom
| Boom Swing Left | 70 degrees |
| Boom Swing Right | 55 degrees |
