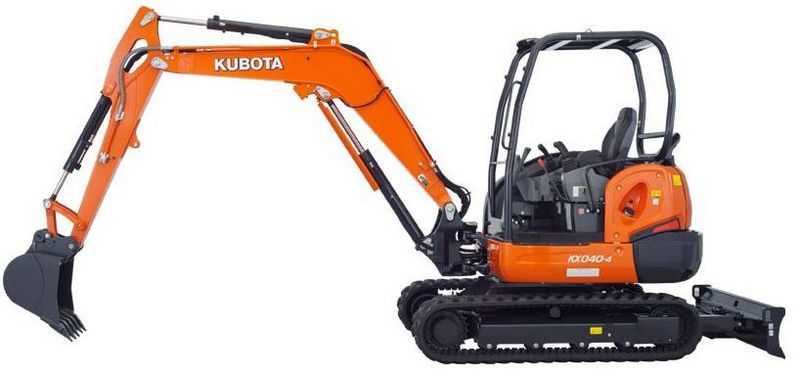

Kubota KX040-4G
Browse All Kubota or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 7.4 ft in (2255 mm) |
| Max Digging Depth | 11.23 ft in (3420 mm) |
| Max.Dumping Height | 12.77 ft in (3890 mm) |
| Max. Breakoutarm | 4112 lb (1865.18 kg) |
| Max Digging Height | 17.51 ft in (5335 mm) |
| Max. Breakout Force Bucket | 9535 lb (4325.01 kg) |
| Mximum Dig Radius | 213 in (5410 mm) |
Dimensions
| Length Of Track On Ground | 16.69 ft in (5085 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Height To Top Of Cab | 8.16 ft in (2485 mm) |
| Tail Swing Radius | 4.27 ft in (1300 mm) |
| Width | 5.58 ft in (1700 mm) |
| Height | 97.84 in (2485 mm) |
| Shoe Width | 1.15 ft in (350 mm) |
Undercarriage
| Ground Pressure | 4.37 psi (30.1 kPa) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
Engine
| Radiator Core Type | Low noise, F shaped blades |
| Oil Filtration | Spin-on type |
| Epa | Tier 4 |
| Air Filter Type | Dual element, cyclonic |
| Number Of Cylinders | 3 |
| Cooling Method | Liquid |
| Engine Make | Kubota |
| Engine Model | D1803-CR-TE4 |
| Engine Type | Water cooled |
| Gross Power | 40.4 hp (30.2 kw) |
| Net Power | 38.9 hp (29.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 111.4 cu in (1.9 L) |
| Aspiration | Turbo |
| Fuel Type | Diesel |
| Model Name | KX040-4G |
Operational
| Operating Weight | 9017 lb (4090.1 kg) |
| Fuel Capacity | 17 gal (64 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65.2 L) |
| Hydraulic Pump Flow Capacity | 6.5 gal/min (24.4 L/min) |
| Ground Pressure | 4.5 psi (30.9 kPa) |
Electrical
| Lighting | Front working |
| Battery Voltage | 12 VDC |
| Battery Capacity | 52 AH |
| Instrument Panel | Digital |
| Engine Shut-Off | Key |
Swing Mechanism
| Swing Speed | 9.2 rpm |
Blade
| Maximum Drop Below Ground | 1.4 ft in (405 mm) |
| Maximum Lift Above Ground | 1.4 ft in (400 mm) |
| Height | 13.8 in (350 mm) |
| Width | 5.6 ft in (1700 mm) |
| Angle Blade Swing Angle | 25 degrees |
| Angle Blade Width | 67 in (1701.8 mm) |
| Angle Blade Height | 15.2 in (386.1 mm) |
Drive System
| Max. Traction Force-Low Speed | 9747 lb (4421.2 kg) |
Brakes
| Parking Brake | Auto travel, house swivel |
