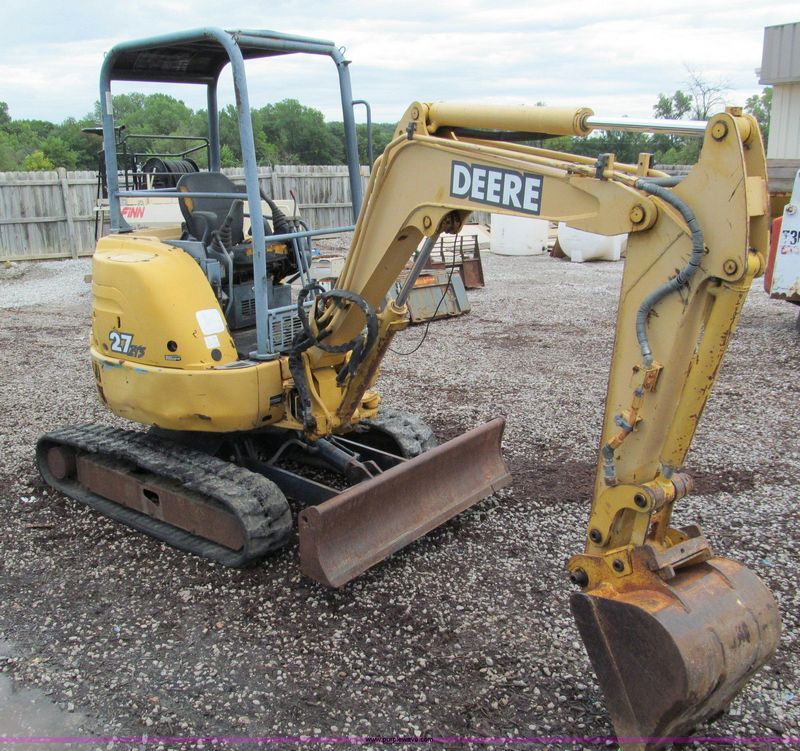

John Deere 27 ZTS
Browse All John Deere or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 3.83 ft in (1167.39 mm) |
| Max Cutting Height | 13.92 ft in (4242.82 mm) |
| Max Loading Height | 9.08 ft in (2767.59 mm) |
| Max Reach Along Ground | 13.92 ft in (4242.82 mm) |
| Max Vertical Wall Digging Depth | 8.67 ft in (2642.62 mm) |
| Max Digging Depth | 8.67 ft in (2642.62 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length |
Dimensions
| Width To Outside Of Tracks | 5.09 ft in (1550 mm) |
| Length Of Track On Ground | 6.33 ft in (1929.39 mm) |
| Ground Clearance | 1.07 ft in (325 mm) |
| Height To Top Of Cab | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 2.58 ft in (786.39 mm) |
| Removal Counterweight Clearance | 1.75 ft in (533.4 mm) |
Undercarriage
| Max Travel Speed | 2.94 mph (4.74 km/h) |
| Ground Pressure | 4.22 psi (29.1 kPa) |
Engine
| Engine Make | 2353 |
| Engine Model | 3LD1 |
| Gross Power | 22 hp (16.5 kw) |
| Power Measured @ | 2450 rpm |
| Displacement | 91.5 cu in (1.5 L) |
Operational
| Operating Weight | 6360 lb (2884.9 kg) |
| Fuel Capacity | 10.5 gal (39.8 L) |
| Hydraulic System Fluid Capacity | 7.9 gal (30 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic Pump Flow Capacity | 12 gal/min (45.5 L/min) |
Swing Mechanism
| Swing Speed | 8.1 rpm |
