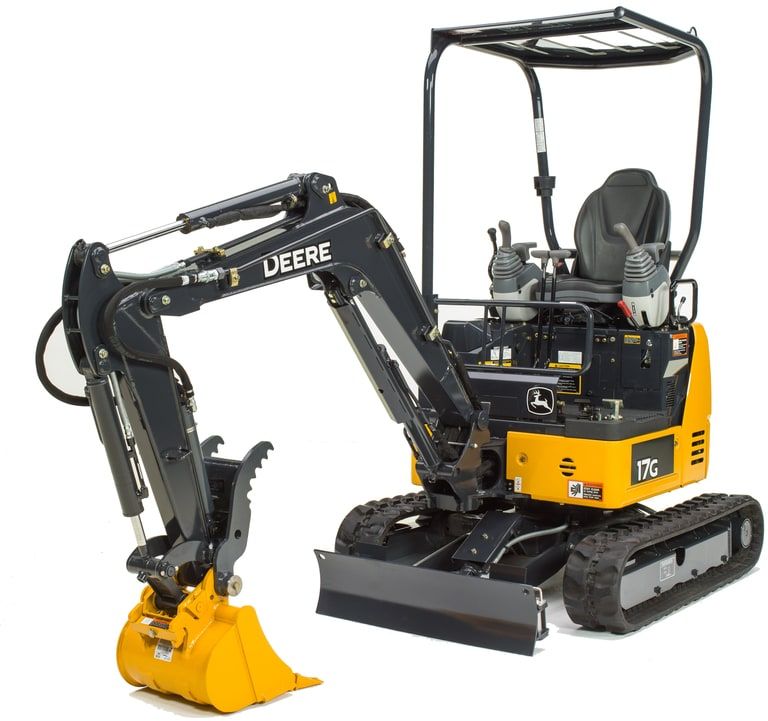

John Deere 17G
Browse All John Deere or Mini Excavator Models
Contents:
Dimensions
| Ground Clearance | 0.55 ft in (165 mm) |
| Tail Swing Radius | 2.24 ft in (680 mm) |
| Digging Reach - Mono Boom | 12.5 ft in (3810 mm) |
| Dozer Blade Height | 10.24 in (260 mm) |
| Dump Height - Mono Boom | 8.24 ft in (2510 mm) |
| Overall Width | 3.22 ft in (980 mm) |
| Standard Dipper | 3.06 ft in (930 mm) |
| Track Length On Ground | 4 ft in (1219.2 mm) |
| Transport Length Mono Boom | 11.49 ft in (3500 mm) |
| Dig Depth - Mono Boom | 7.19 ft in (2190 mm) |
| Undercarriage Overall Length | 5.16 ft in (1570 mm) |
| Dig Height - Mono Boom | 11.62 ft in (3540 mm) |
Driveline
| Displacement | 60.5 cu in (1 L) |
| Engine Manufacturer | Yanmar |
| Engine Output | 14.5 hp (10.8 kw) |
| Emission Rating | Tier 4 |
| Rated Speed | 2400 rpm |
| Track Shoe Width | 9.1 in (230 mm) |
| Number Of Cylinders | 3 |
Capacities
| Fuel Tank - Diesel | 5.5 gal (20.6 L) |
| Hydraulic Tank | 3.8 gal (14.1 L) |
| System Voltage | 12 V |
| Number Of Batteries | 1 |
Performance
| Travel Speed | 2.6 mph (4.2 km/h) |
| Slew Speed | 9.4 rpm |
| Ground Bearing Pressure | 3.9 psi (26.9 kPa) |
| Breakout - Bucket | 3597 lb (16 kN) |
| Dipper Tearout | 1933.4 lb (8.6 kN) |
| Main Pumps - Maximum Flow | 10.2 gal/min (38.4 L/min) |
Weights
| Operating Weight | 3792 lb (1720 kg) |
