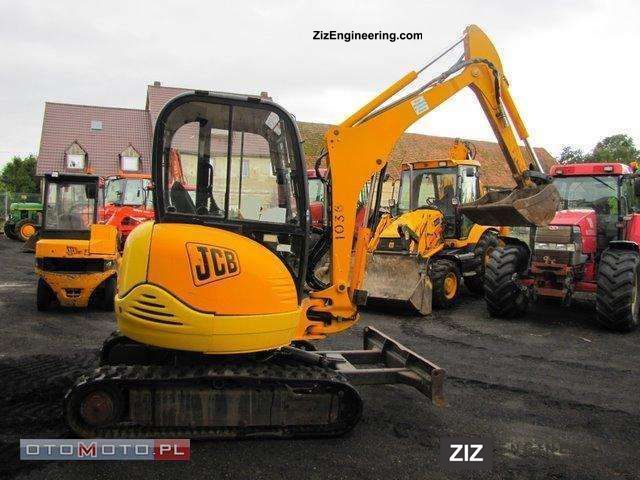

JCB 8027ZTS
Browse All JCB or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.5 ft in (4426 mm) |
| Max Cutting Height | 13.92 ft in (4264 mm) |
| Shipping Height Of Unit | 8.08 ft in (2464 mm) |
| Max Loading Height | 10.17 ft in (3107 mm) |
| Max Reach Along Ground | 15.5 ft in (4714 mm) |
| Max Vertical Wall Digging Depth | 6.08 ft in (1843 mm) |
| Max Digging Depth | 8.25 ft in (2510 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 3ft. 8in. (110mm ) |
Dimensions
| Width To Outside Of Tracks | 5.25 ft in (1650 mm) |
| Length Of Track On Ground | 5.42 ft in (1585 mm) |
| Ground Clearance | 0.99 ft in (300 mm) |
| Height To Top Of Cab | 8.08 ft in (2464 mm) |
| Tail Swing Radius | 2.58 ft in (795 mm) |
| Removal Counterweight Clearance | 2.08 ft in (620 mm) |
Undercarriage
| Shoe Size | 10 in (250 mm) |
| Max Travel Speed | 2.21 mph (3.54 km/h) |
| Drawbar Pull | 2657 lb (11.82 kN) |
| Ground Pressure | 4.99 psi (34.34 kPa) |
| Number Of Track Rollers Per Side | 4 |
Engine
| Engine Make | 2351 |
| Engine Model | 403-15 |
| Gross Power | 27.8 hp (20.7 kw) |
| Net Power | 26.6 hp (19.8 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 1496 cu in (24.6 L) |
| Max Torque | 67.9 lb ft (92 Nm) |
Operational
| Operating Weight | 6533 lb (2963 kg) |
| Fuel Capacity | 10.3 gal (39 L) |
| Cooling System Fluid Capacity | 1.9 gal (7 L) |
| Hydraulic System Fluid Capacity | 15.4 gal (70 L) |
| Engine Oil Capacity | 1.2 gal (4.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 3000 psi (20684.3 kPa) |
| Hydraulic Pump Flow Capacity | 14.5 gal/min (55 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
