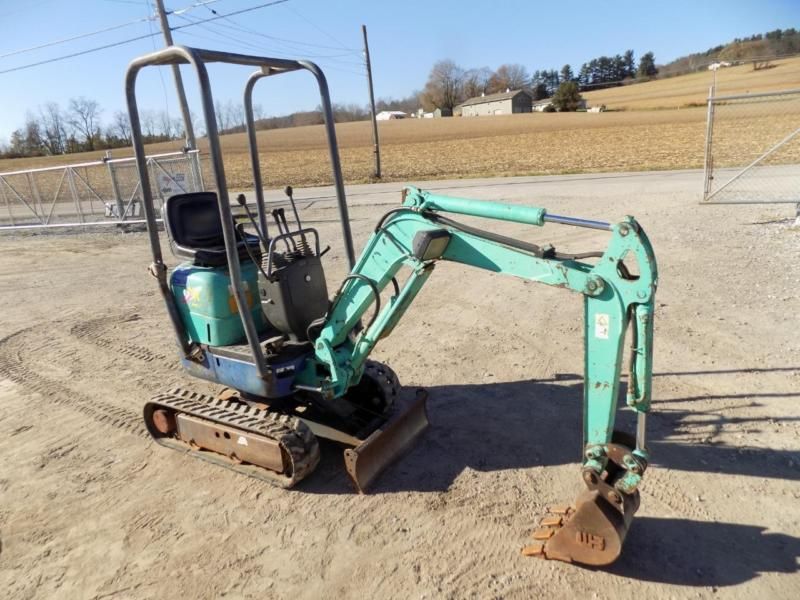

IHI 9NX-2
Browse All IHI or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 8.83 ft in (2691.39 mm) |
| Max Cutting Height | 9 ft in (2743.2 mm) |
| Shipping Height Of Unit | 6.83 ft in (2081.79 mm) |
| Max Loading Height | 9.75 ft in (2971.8 mm) |
| Max Vertical Wall Digging Depth | 3.83 ft in (1167.39 mm) |
| Max Digging Depth | 5.17 ft in (1575.82 mm) |
Dimensions
| Width To Outside Of Tracks | 2.27 ft in (691.9 mm) |
| Height To Top Of Cab | 6.83 ft in (2081.79 mm) |
| Removal Counterweight Clearance | 1.33 ft in (405.39 mm) |
Undercarriage
| Shoe Size | 7 in (177.8 mm) |
| Track Gauge | 1.7 ft in (518.16 mm) |
| Max Travel Speed | 2.21 mph (3.55 km/h) |
| Ground Pressure | 3.8 psi (26.21 kPa) |
Engine
| Engine Make | 2348 |
| Engine Model | 2TNV70 |
| Gross Power | 10 hp (7.5 kw) |
Operational
| Operating Weight | 2060 lb (934.5 kg) |
| Fuel Capacity | 2.2 gal (8.4 L) |
| Hydraulic System Relief Valve Pressure | 2350 psi (16202.7 kPa) |
| Hydraulic Pump Flow Capacity | 5.9 gal/min (22.4 L/min) |
Swing Mechanism
| Swing Speed | 8.7 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
