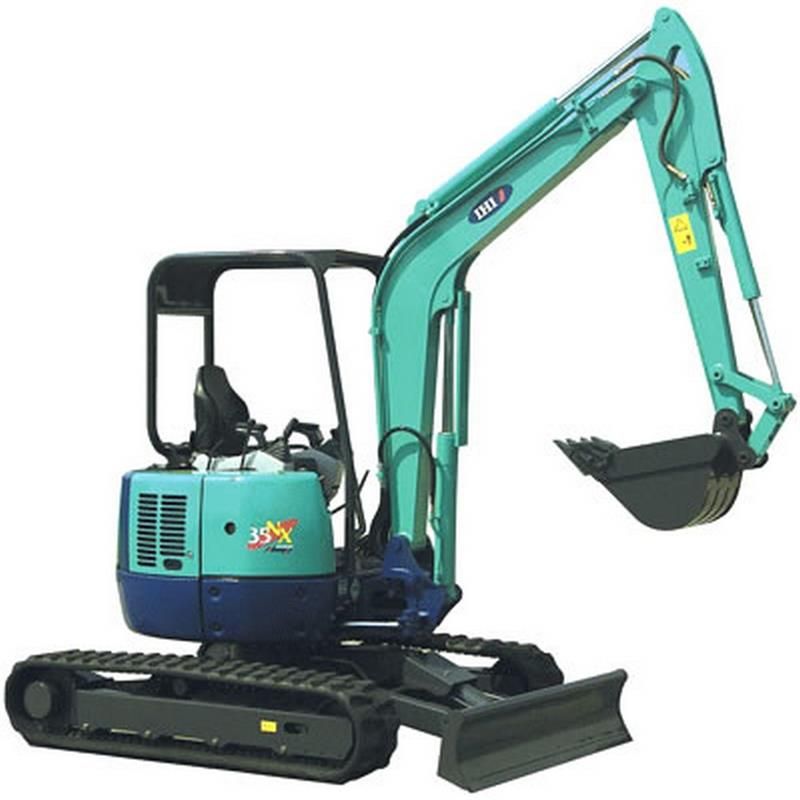

IHI 35NX-2
Browse All IHI or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 15 ft in (4572 mm) |
| Max Cutting Height | 15.92 ft in (4852.42 mm) |
| Shipping Height Of Unit | 8.08 ft in (2462.79 mm) |
| Max Loading Height | 11.08 ft in (3377.19 mm) |
| Max Vertical Wall Digging Depth | 9.67 ft in (2947.42 mm) |
| Max Digging Depth | 11.33 ft in (3453.39 mm) |
Dimensions
| Width To Outside Of Tracks | 5 ft in (1524 mm) |
| Height To Top Of Cab | 8.08 ft in (2462.79 mm) |
| Tail Swing Radius | 2.75 ft in (838.2 mm) |
| Removal Counterweight Clearance | 1.83 ft in (557.79 mm) |
Undercarriage
| Shoe Size | 12 in (304.8 mm) |
| Track Gauge | 4 ft in (1219.2 mm) |
| Ground Pressure | 4.6 psi (31.72 kPa) |
| Max Travel Speed | 3 mph (4.83 km/h) |
Engine
| Engine Make | 2348 |
| Engine Model | 3TNV84 |
| Gross Power | 26.5 hp (19.8 kw) |
Operational
| Operating Weight | 7440 lb (3374.8 kg) |
| Fuel Capacity | 10.6 gal (40.2 L) |
| Hydraulic System Relief Valve Pressure | 2990 psi (20615.4 kPa) |
| Hydraulic Pump Flow Capacity | 27.1 gal/min (102.6 L/min) |
Swing Mechanism
| Swing Speed | 8.8 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
