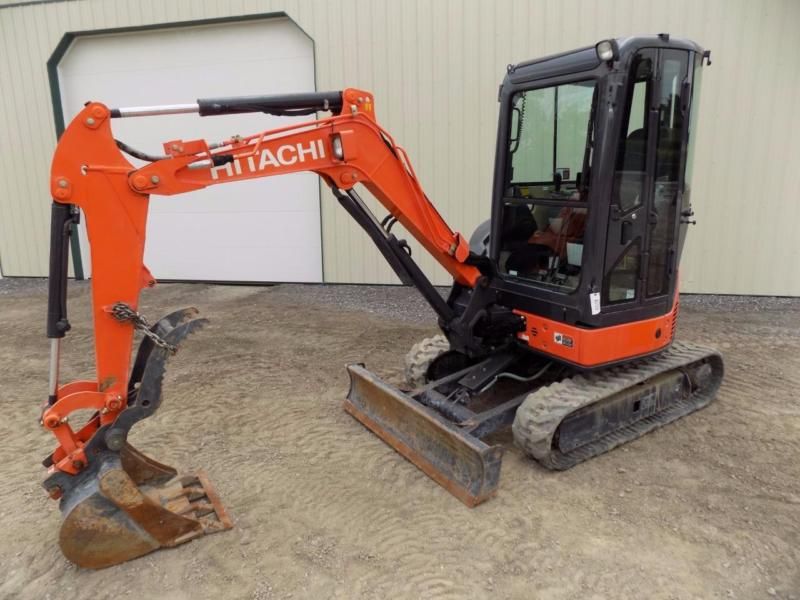

Hitachi ZX27U-3
Browse All Hitachi or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.05 ft in (4280 mm) |
| Max Cutting Height | 14.05 ft in (4280 mm) |
| Shipping Height Of Unit | 8.21 ft in (2500 mm) |
| Max Loading Height | 9.95 ft in (3030 mm) |
| Max Reach Along Ground | 15.1 ft in (4600 mm) |
| Max Digging Depth | 8.5 ft in (2590 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6'10" (2.1 m) / Stick 3'10" (1.17 m) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 14.28 ft in (4350 mm) |
| Shipping Length Of Unit | 14.05 ft in (4280 mm) |
| Max Loading Height | 10.24 ft in (3120 mm) |
| Shipping Height Of Unit | 8.21 ft in (2500 mm) |
| Max Reach Along Ground | 16.08 ft in (4900 mm) |
| Max Digging Depth | 9.49 ft in (2890 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6'10" (2.1 m ) / Stick 4'10" (1.47 m ) |
Dimensions
| Width To Outside Of Tracks | 5.09 ft in (1550 mm) |
| Length Of Track On Ground | 4.89 ft in (1490 mm) |
| Ground Clearance | 1.05 ft in (320 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Tail Swing Radius | 2.55 ft in (775 mm) |
| Removal Counterweight Clearance | 1.81 ft in (550 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Ground Pressure | 4.35 psi (30 kPa) |
| Max Travel Speed | 2.8 mph (4.51 km/h) |
Engine
| Engine Make | 2348 |
| Engine Model | 3TNV88 |
| Net Power | 26.4 hp (19.7 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 100 cu in (1.7 L) |
Operational
| Operating Weight | 6730 lb (3052.7 kg) |
| Fuel Capacity | 10.6 gal (40 L) |
| Cooling System Fluid Capacity | 1.4 gal (5 L) |
| Hydraulic System Fluid Capacity | 8.5 gal (32 L) |
| Engine Oil Capacity | 2 gal (7.2 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic Pump Flow Capacity | 16.4 gal/min (62 L/min) |
Swing Mechanism
| Swing Speed | 9.1 rpm |
