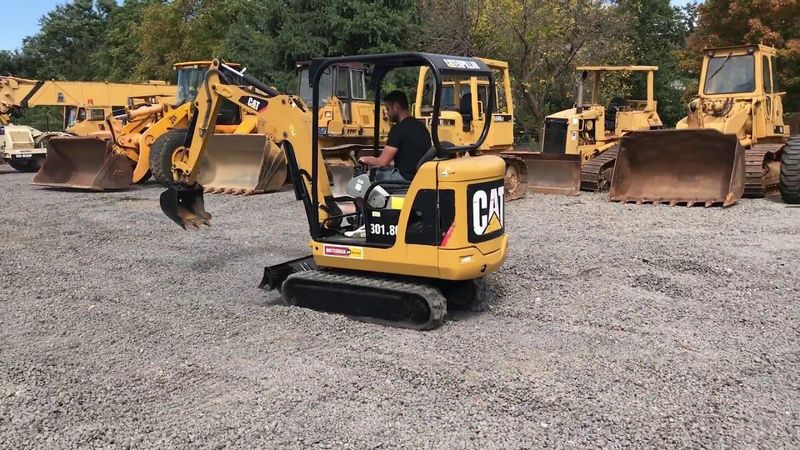

Caterpillar 301.8C
Browse All Caterpillar or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.08 ft in (3695 mm) |
| Max Cutting Height | 11 ft in (3350 mm) |
| Shipping Height Of Unit | 7.17 ft in (2190 mm) |
| Max Loading Height | 7.75 ft in (2360 mm) |
| Max Reach Along Ground | 11.83 ft in (3610 mm) |
| Max Vertical Wall Digging Depth | 5.33 ft in (1620 mm) |
| Max Digging Depth | 6.83 ft in (2080 mm) |
| Boom/Stick Option (Hex) 1 | Standard Stick |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 11.33 ft in (3460 mm) |
| Shipping Length Of Unit | 12.08 ft in (3695 mm) |
| Max Loading Height | 8.17 ft in (2480 mm) |
| Shipping Height Of Unit | 7.17 ft in (2190 mm) |
| Max Reach Along Ground | 12.5 ft in (3800 mm) |
| Max Vertical Wall Digging Depth | 5.92 ft in (1810 mm) |
| Max Digging Depth | 7.58 ft in (2320 mm) |
| Boom/Stick Option (Hex) 2 | Long stick |
Dimensions
| Width To Outside Of Tracks | 4.42 ft in (1340 mm) |
| Length Of Track On Ground | 5.17 ft in (1575 mm) |
| Height To Top Of Cab | 7.17 ft in (2190 mm) |
| Tail Swing Radius | 3.58 ft in (1090 mm) |
| Track Gauge | 2.5 ft in (762 mm) |
| Maximum Digging Depth - Standard Stick | 6.8 ft in (2.08 m) |
| Maximum Dump Height - Long Stick | 8.1 ft in (2.47 m) |
| Maximum Dump Height - Standard Stick | 7.7 ft in (2.35 m) |
| Maximum Horizontal Reach - Long Stick | 12.9 ft in (3.94 m) |
| Maximum Horizontal Reach - Standard Stick | 12.2 ft in (3.72 m) |
| Maximum Reach - Ground Level - Long Stick | 12.6 ft in (3.85 m) |
| Maximum Reach - Ground Level - Standard Stick | 11.8 ft in (3.6 m) |
| Maximum Vertical Dig Depth - Long Stick | 5.9 ft in (1.8 m) |
| Maximum Vertical Dig Depth - Standard Stick | 5.3 ft in (1.62 m) |
| Removal Counterweight Clearance | 1.42 ft in (435 mm) |
| Shipping Height | 7.19 ft in (2191.52 mm) |
| Length - Center Of Rollers | 11.84 ft |
| Shipping Length | 12.1 ft in (3688.08 mm) |
| Height - Over Canopy | 7.2 ft in (2.2 m) |
| Height - Over Cab | 7.19 ft in (2.2 m) |
| Stick Length - Long Stick | 3.6 ft in (1.1 m) |
| Stick Length - Standard Stick | 2.9 ft in (0.89 m) |
| Swing Radius - Rear | 3.58 ft in (1.1 m) |
| Center Ground Clearance | 0.75 ft in (0.23 m) |
| Maximum Cutting Height - Long Stick | 11.2 ft in (3.42 m) |
| Maximum Cutting Height - Standard Stick | 10.9 ft in (3.33 m) |
| Maximum Digging Depth - Long Stick | 7.8 ft in (2.38 m) |
| Transport Width | 3.22 ft in (981.46 mm) |
| Width - Over Track | 3.25 ft in (1 m) |
| Width - Upper Structure | 3.3 ft in (1.01 m) |
| Track Shoe Width | 9 ft in (2.75 m) |
Undercarriage
| Shoe Size | 9 in (230 mm) |
| Track Gauge | 2.5 ft in (750 mm) |
| Max Travel Speed | 3 mph (4.5 km/h) |
Electrical System
| Electrical System Type | Twelve-volt system |
Swing System
| Swing System Type | Hydraulic Motor Driven |
| Machine Swing Speed | 10.5 rpm |
| Boom Swing - Left - Without Stop | 90 degrees |
| Boom Swing - Left - With Stop | 54 degrees |
| Boom Swing - Right | 50 degrees |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | L3E |
| Gross Power | 19 hp (14.2 kw) |
| Net Power | 18.1 hp (13.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 53 cu in (1 L) |
| Engine Model | Mitsubishi L3NE NA Diesel |
Operational
| Operating Weight | 3936 lb (1785 kg) |
| Fuel Capacity | 5.8 gal (22 L) |
| Cooling System Fluid Capacity | 1.1 gal (4 L) |
| Hydraulic System Fluid Capacity | 9.8 gal (37 L) |
| Engine Oil Capacity | 1.1 gal (4.1 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic System Relief Valve Pressure | 2988 psi (20600 kPa) |
| Hydraulic Pump Flow Capacity | 10.5 gal/min (39.6 L/min) |
Swing Mechanism
| Swing Speed | 10.5 rpm |
Weights
| Operating Weight | 3703 lb (1679.7 kg) |
| Operating Weight - With Cab | 3935 lb (1784.9 kg) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
Blade
| Height | 10 in (254 mm) |
| Width | 3.3 ft in (977.9 mm) |
| Lift Height | 7.7 in (195.6 mm) |
| Dig Depth | 9.8 in (249 mm) |
Hydraulic System
| Operating Pressure - Swing | 2524 psi |
| Operating Pressure - Equipment | 2988 psi |
| Operating Pressure - Travel | 2988 psi |
| Digging Force - Stick - Standard | 2226 lb (1009.7 kg) |
| Digging Force - Stick - Long | 1978 lb (897.3 kg) |
| Digging Force - Bucket | 3462 lb (1570.4 kg) |
| Auxiliary Circuits - Primary - At 174 Bar | 9.1 gal/min |
| Auxiliary Circuits - Secondary - At 174 Bar | 3.85 gal/min |
| Pump - Piston (Tandem) | 5.25 gal/min |
| Pump - Gear (Dual) (Swing, Pilot) | 3.85 gal/min |
Service Refill Capacities
| Cooling System | 1.1 gal (4.1 L) |
| Fuel Tank | 5.8 gal (22 L) |
| Hydraulic Tank | 6.3 gal (23.9 L) |
| Hydraulic System | 9.8 gal (37.1 L) |
| Engine Oil | 1.1 gal (4.2 L) |
Engine Dimensions
| Bore | 3 in (76.2 mm) |
| Stroke | 3 in (76.2 mm) |
| Displacement | 58 cu in (1 L) |
Sound Levels
| Cab | 83 dB(A) |
| Canopy | 83 dB(A) |
Msc Comments
| Msc Spec Date | 8/05 |
Travel System
| Maximum Traction Force - High Speed | 1574 lb (714 kg) |
| Maximum Traction Force - Low Speed | 3372 lb (1529.6 kg) |
| Gradeability - Maximum - High | 30 degrees |
| Travel Speed - High | 3 mph (4.9 km/h) |
| Travel Speed - Low | 1.3 mph (2.1 km/h) |
