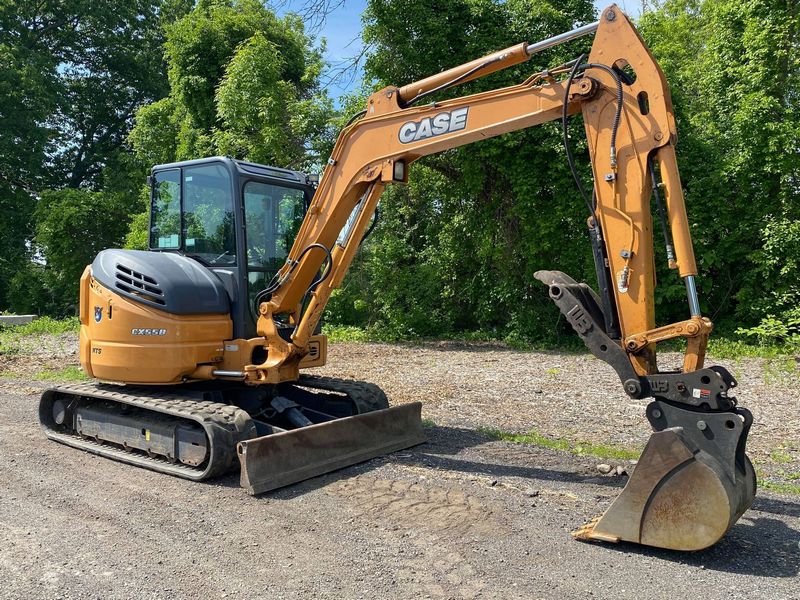

Case CX55B
Browse All Case or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Reach Along Ground | 20 ft in (6096 mm) |
| Max Digging Depth | 12.1 ft in (3688.08 mm) |
| Max.Dumping Height | 14.3 ft in (4358.65 mm) |
Dimensions
| Tail Swing Radius | 3.1 ft in (944.88 mm) |
Undercarriage
| Drawbar Pull | 12342.01 lb (54.9 kN) |
| Max Travel Speed | 2.5 mph (4.03 km/h) |
Engine
| Emissions Level | Tier 4 |
| Engine Model | Yanmar 4 TNV 88 |
| Net Power | 37.5 hp (27.9 kw) |
| Power Measured @ | 2400 rpm |
Lift System
| Bucket Breakout Force | 11105.6 lb (49.4 kN) |
| Lift Over Side Max. Reach | 1080.3 lb (490 kg) |
| Lift Over End Max. Reach - Lbs | 1322.8 lb (600 kg) |
Operational
| Operating Weight | 11309.8 lb (5130 kg) |
| Hydraulic System Relief Valve Pressure | 3336 psi (23000.9 kPa) |
| Hydraulic Pump Flow Capacity | 26.4 gal/min (99.8 L/min) |
Boom
| Arm Length | 5.6 ft in (1706.9 mm) |
| Boom Length | 9.4 ft in (2865.2 mm) |
