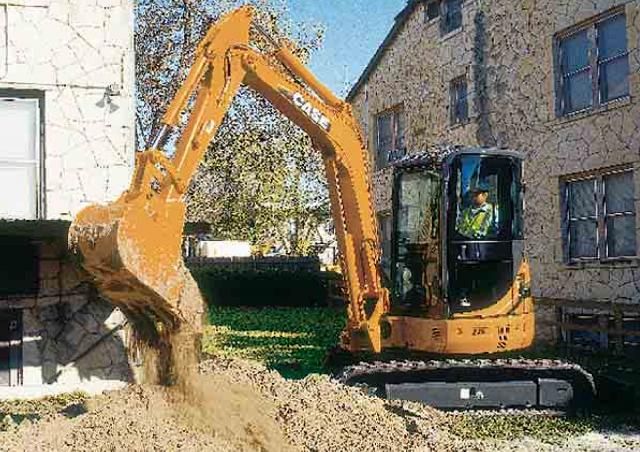

Case CX40B ZTS
Browse All Case or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 16.41 ft in (5000 mm) |
| Max Cutting Height | 18.02 ft in (5490 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Loading Height | 12.83 ft in (3910 mm) |
| Max Reach Along Ground | 18.57 ft in (5660 mm) |
| Max Vertical Wall Digging Depth | 8.63 ft in (2630 mm) |
| Max Digging Depth | 11.13 ft in (3390 mm) |
| Boom/Stick Option (Hex) 1 | Std. Dipper 1.43M |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 18.64 ft in (5680 mm) |
| Shipping Length Of Unit | 16.41 ft in (5000 mm) |
| Max Loading Height | 13.46 ft in (4100 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Reach Along Ground | 19.43 ft in (5920 mm) |
| Max Vertical Wall Digging Depth | 9.55 ft in (2910 mm) |
| Max Digging Depth | 12.01 ft in (3660 mm) |
| Boom/Stick Option (Hex) 2 | Long Dipper 1.70M |
Dimensions
| Width To Outside Of Tracks | 6.44 ft in (1960 mm) |
| Length Of Track On Ground | 5.98 ft in (1820 mm) |
| Ground Clearance | 1.14 ft in (345 mm) |
| Height To Top Of Cab | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 3.22 ft in (980 mm) |
| Removal Counterweight Clearance | 2.09 ft in (635 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 5.12 ft in (1560 mm) |
| Max Travel Speed | 2.61 mph (4.2 km/h) |
| Ground Pressure | 3.91 psi (26.96 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88A-XYB |
| Net Power | 43 hp (32.1 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 133.7 cu in (2.2 L) |
| Max Torque | 102.8 lb ft (139.3 Nm) |
| Torque Measured @ | 1440 rpm |
Operational
| Operating Weight | 9479.9 lb (4300 kg) |
| Fuel Capacity | 14.1 gal (53 L) |
| Cooling System Fluid Capacity | 1.6 gal (6 L) |
| Hydraulic System Fluid Capacity | 16.7 gal (63 L) |
| Engine Oil Capacity | 2 gal (7.4 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 3335.9 psi (23000 kPa) |
| Hydraulic Pump Flow Capacity | 39.1 gal/min (148 L/min) |
Swing Mechanism
| Swing Speed | 8.8 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
