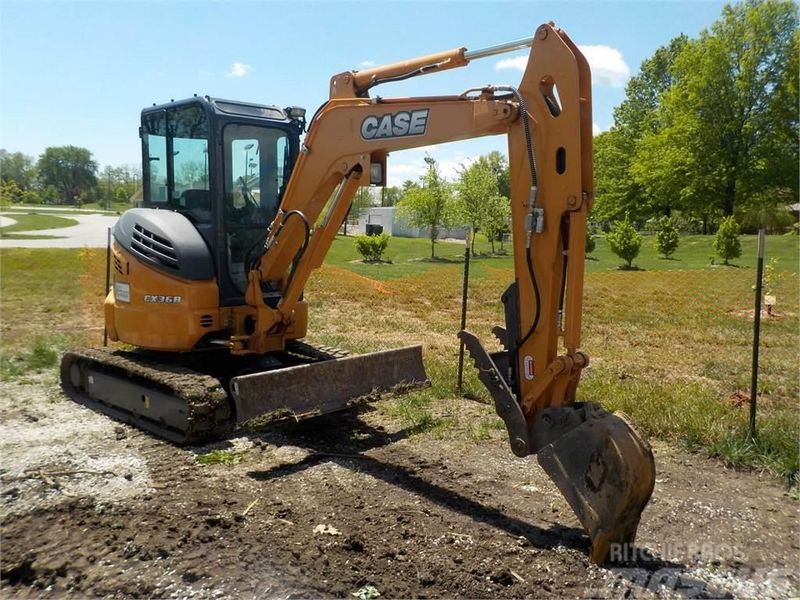

Case CX36
Browse All Case or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 15.49 ft in (4720 mm) |
| Max Cutting Height | 14.87 ft in (4530 mm) |
| Shipping Height Of Unit | 8.24 ft in (2510 mm) |
| Max Loading Height | 10.57 ft in (3220 mm) |
| Max Reach Along Ground | 16.61 ft in (5060 mm) |
| Max Vertical Wall Digging Depth | 7.62 ft in (2320 mm) |
| Max Digging Depth | 10.18 ft in (3100 mm) |
| Boom/Stick Option (Hex) 1 | Boom 8'2" (2490mm)/ Stick 4'4" (1320mm) |
Dimensions
| Width To Outside Of Tracks | 5.58 ft in (1700 mm) |
| Length Of Track On Ground | 5.58 ft in (1700 mm) |
| Ground Clearance | 1.05 ft in (320 mm) |
| Height To Top Of Cab | 8.24 ft in (2510 mm) |
| Tail Swing Radius | 2.79 ft in (850 mm) |
| Removal Counterweight Clearance | 1.88 ft in (570 mm) |
Undercarriage
| Shoe Size | 11.8 in (299.73 mm) |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 4.5 psi (31.03 kPa) |
| Max Travel Speed | 2.8 mph (4.51 km/h) |
| Number Of Track Rollers Per Side | 4 |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNE82A |
| Net Power | 23.7 hp (17.7 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 81.1 cu in (1.4 L) |
| Max Torque | 58.6 lb ft (79.5 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 7738 lb (3509.9 kg) |
| Fuel Capacity | 1 gal (3.7 L) |
| Cooling System Fluid Capacity | 0.8 gal (2.7 L) |
| Hydraulic System Fluid Capacity | 12.7 gal (48 L) |
| Engine Oil Capacity | 1 gal (3.7 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 24 amps |
| Hydraulic System Relief Valve Pressure | 3277 psi (157 kPa) |
| Hydraulic Pump Flow Capacity | 18.4 gal/min (69.6 L/min) |
Swing Mechanism
| Swing Speed | 8.6 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
