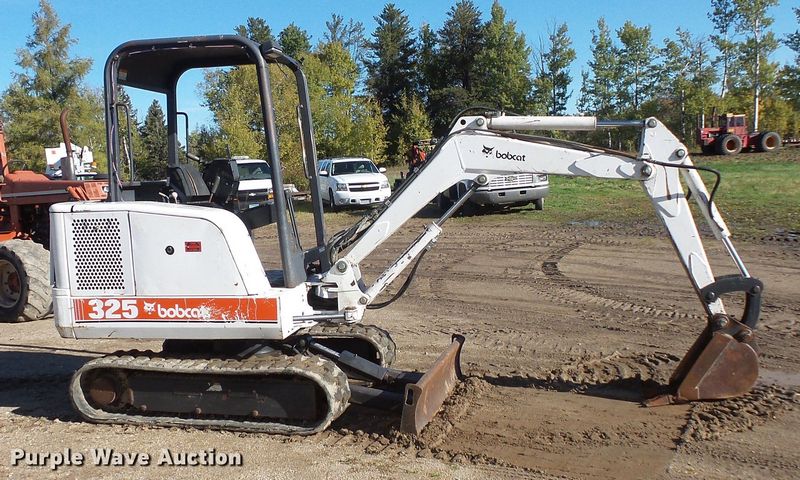

Bobcat 325
Browse All Bobcat or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.77 ft in (4196 mm) |
| Max Cutting Height | 13.31 ft in (4055 mm) |
| Shipping Height Of Unit | 7.74 ft in (2357 mm) |
| Max Loading Height | 9.12 ft in (2779 mm) |
| Max Reach Along Ground | 166.66 ft in (50797.97 mm) |
| Max Vertical Wall Digging Depth | 5.91 ft in (1801 mm) |
| Max Digging Depth | 100.6 ft in (30662.88 mm) |
| Boom/Stick Option (Hex) 1 | Stick 1050mm |
Dimensions
| Width To Outside Of Tracks | 4.58 ft in (1395.99 mm) |
| Length Of Track On Ground | 4.53 ft in (1380 mm) |
| Height To Top Of Cab | 7.73 ft in (2356.11 mm) |
| Tail Swing Radius | 3.82 ft in (1162 mm) |
| Removal Counterweight Clearance | 1.75 ft in (532 mm) |
Undercarriage
| Shoe Size | 12.6 in (320 mm) |
| Track Gauge | 3.54 ft in (1078 mm) |
| Ground Pressure | 4.21 psi (29 kPa) |
| Max Travel Speed | 1.9 mph (3.06 km/h) |
Engine
| Engine Make | 2334 |
| Engine Model | D1703-M-E2B |
| Gross Power | 27.7 hp (20.7 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 97.7 cu in (1.6 L) |
Operational
| Operating Weight | 6145 lb (2787.4 kg) |
| Fuel Capacity | 14.1 gal (53.3 L) |
| Hydraulic Pump Flow Capacity | 17.5 gal/min (66.2 L/min) |
Swing Mechanism
| Swing Speed | 9.2 rpm |
