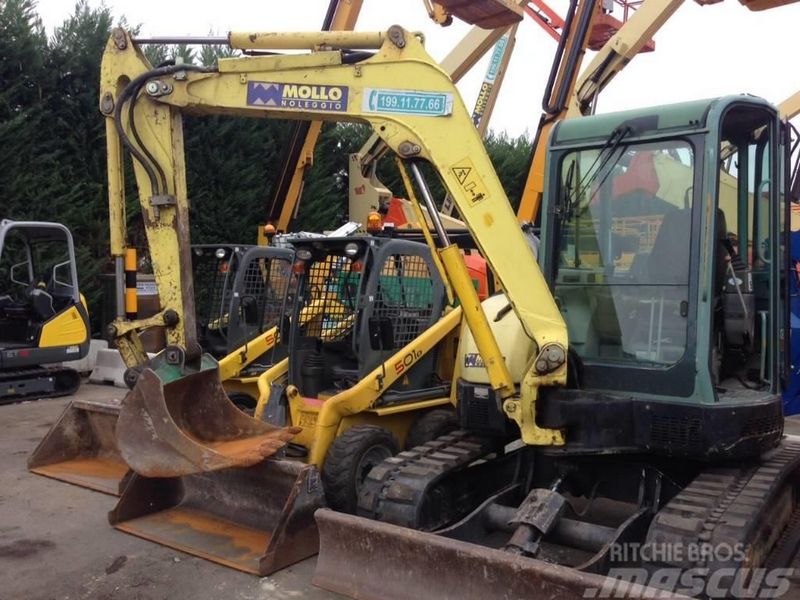

Yanmar Vio45-5
Browse All Yanmar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.26 ft in (5260 mm) |
| Shipping Height Of Unit | 8.6 ft in (2620 mm) |
| Max Cutting Height | 19.53 ft in (5950 mm) |
| Max Loading Height | 12.83 ft in (3910 mm) |
| Max Reach Along Ground | 19.1 ft in (5820 mm) |
| Max Vertical Wall Digging Depth | 8.86 ft in (2700 mm) |
| Max Digging Depth | 12.08 ft in (3680 mm) |
| Boom/Stick Option (Hex) 1 | Standard |
Dimensions
| Width To Outside Of Tracks | 6.4 ft in (1950 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.6 ft in (2620 mm) |
| Tail Swing Radius | 3.2 ft in (975 mm) |
Undercarriage
| Shoe Size | 13.78 in (350 mm) |
| Ground Pressure | 4.32 psi (29.79 kPa) |
| Max Travel Speed | 2.8 mph (4.51 km/h) |
Engine
| Engine Make | 2348 |
| Engine Model | 4TNV88-PBV |
| Gross Power | 38.7 hp (28.9 kw) |
| Power Measured @ | 2400 rpm |
Operational
| Operating Weight | 10388 lb (4712 kg) |
| Fuel Capacity | 16.9 gal (64 L) |
| Hydraulic System Relief Valve Pressure | 3133 psi (21601.3 kPa) |
| Hydraulic Pump Flow Capacity | 35 gal/min (132.5 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
