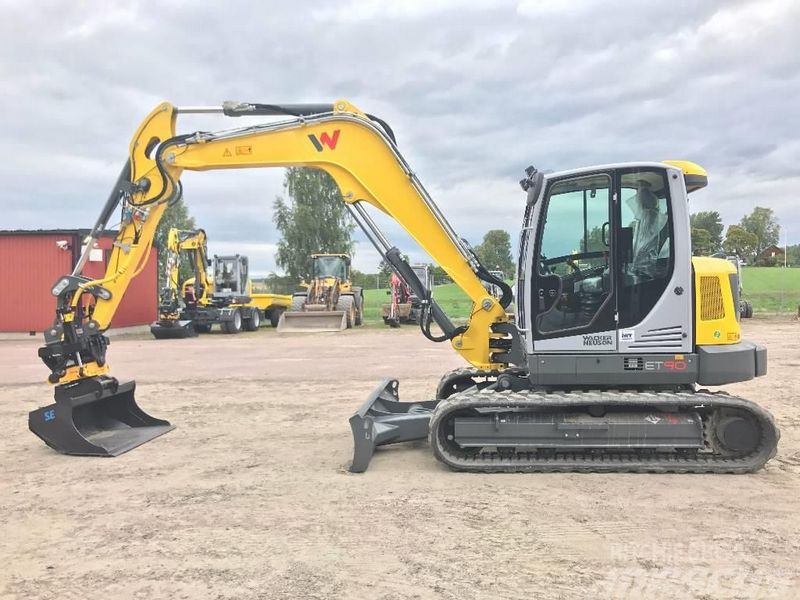

Wacker Neuson ET90
Browse All Wacker Neuson or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.35 ft in (7117.08 mm) |
| Shipping Height Of Unit | 8.41 ft in (2562.86 mm) |
| Max Cutting Height | 24.03 ft in (7322.82 mm) |
| Max Loading Height | 16.62 ft in (5064.76 mm) |
| Max Reach Along Ground | 23.55 ft in (7178.04 mm) |
| Max Vertical Wall Digging Depth | 10.48 ft in (3192.78 mm) |
| Max Digging Depth | 14.2 ft in (4325.62 mm) |
| Boom/Stick Option (Hex) 1 | Standard arm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 23.43 ft in (7139.94 mm) |
| Shipping Height Of Unit | 8.41 ft in (2562.86 mm) |
| Max Cutting Height | 24.7 ft in (7528.56 mm) |
| Max Loading Height | 17.3 ft in (5273.04 mm) |
| Max Reach Along Ground | 24.53 ft in (7475.22 mm) |
| Max Digging Depth | 15.18 ft in (4625.34 mm) |
| Max Vertical Wall Digging Depth | 11.4 ft in (3474.72 mm) |
| Boom/Stick Option (Hex) 2 | Long arm |
Dimensions
| Width To Outside Of Tracks | 3.29 ft in (1000.76 mm) |
| Length Of Track On Ground | 23.35 ft in (7117.08 mm) |
| Ground Clearance | 1.22 ft in (370.84 mm) |
| Height To Top Of Cab | 8.41 ft in (2562.86 mm) |
| Tail Swing Radius | 5.2 ft in (1582.42 mm) |
Undercarriage
| Shoe Size | 17.7 in (449.58 mm) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 2.9 DOC |
| Gross Power | 73.7 hp (55 kw) |
| Power Measured @ | 1850 rpm |
| Displacement | 178.1 cu in (3 L) |
| Aspiration | Liquid-cooled |
Operational
| Operating Weight | 22020 lb (9988.2 kg) |
| Fuel Capacity | 22.5 gal (85.2 L) |
| Hydraulic System Fluid Capacity | 24.3 gal (92 L) |
| Hydraulic System Relief Valve Pressure | 4351 psi (29999.1 kPa) |
| Hydraulic Pump Flow Capacity | 46.4 gal/min (175.7 L/min) |
