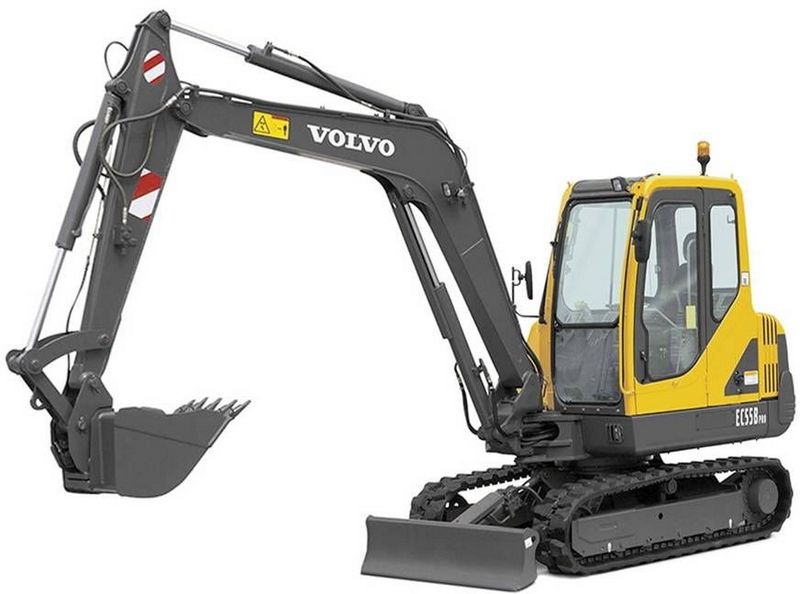

Volvo EC55B Pro
Browse All Volvo or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.36 ft in (5900 mm) |
| Shipping Height Of Unit | 8.4 ft in (2560 mm) |
| Max Cutting Height | 18.94 ft in (5770 mm) |
| Max Loading Height | 13.42 ft in (4090 mm) |
| Max Reach Along Ground | 19.62 ft in (5980 mm) |
| Max Vertical Wall Digging Depth | 8.6 ft in (2620 mm) |
| Max Digging Depth | 12.54 ft in (3820 mm) |
| Boom/Stick Option (Hex) 1 | Boom 9'10" (3030mm)/Stick 5'0" (1540mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 19.36 ft in (5900 mm) |
| Shipping Height Of Unit | 8.4 ft in (2560 mm) |
| Max Cutting Height | 19.72 ft in (6010 mm) |
| Max Loading Height | 14.18 ft in (4320 mm) |
| Max Reach Along Ground | 20.74 ft in (6320 mm) |
| Max Digging Depth | 13.72 ft in (4180 mm) |
| Max Vertical Wall Digging Depth | 9.81 ft in (2990 mm) |
| Boom/Stick Option (Hex) 2 | Boom 9'10" (3030mm)/Stick 6'3" (1900mm) |
Dimensions
| Width To Outside Of Tracks | 6.3 ft in (1920 mm) |
| Length Of Track On Ground | 6.4 ft in (1950 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Height To Top Of Cab | 8.4 ft in (2560 mm) |
| Tail Swing Radius | 5.42 ft in (1650 mm) |
| Removal Counterweight Clearance | 2.27 ft in (690 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 4.99 ft in (1520 mm) |
| Max Travel Speed | 2.5 mph (4.03 km/h) |
| Number Of Track Rollers Per Side | 5 |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D3.1A |
| Gross Power | 52 hp (38.8 kw) |
| Net Power | 49.8 hp (37.2 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 186.3 cu in (3.1 L) |
| Max Torque | 155 lb ft (210.2 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 12125 lb (5499.9 kg) |
| Fuel Capacity | 23.8 gal (90 L) |
| Cooling System Fluid Capacity | 3 gal (11 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 2.7 gal (10.1 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 3190 psi (21994.3 kPa) |
| Hydraulic Pump Flow Capacity | 27.6 gal/min (104.5 L/min) |
Swing Mechanism
| Swing Speed | 9.4 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
