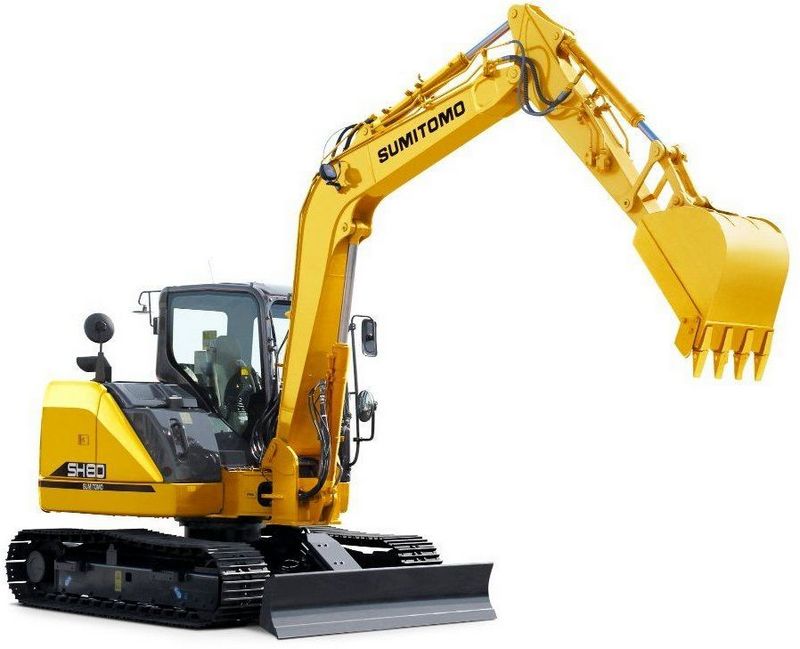

Sumitomo SH80-3B
Browse All Sumitomo or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 22.12 ft in (6740 mm) |
| Shipping Height Of Unit | 8.86 ft in (2700 mm) |
| Max Loading Height | 15.1 ft in (4600 mm) |
| Max Reach Along Ground | 23.86 ft in (7270 mm) |
| Max Vertical Wall Digging Depth | 11 ft in (3350 mm) |
| Max Digging Depth | 15.06 ft in (4590 mm) |
Dimensions
| Width To Outside Of Tracks | 7.62 ft in (2320 mm) |
| Length Of Track On Ground | 7.26 ft in (2210 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Tail Swing Radius | 5.35 ft in (1630 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AU-4LE2X |
| Gross Power | 53.7 hp (40 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operating Weight | 18739.3 lb (8500 kg) |
| Hydraulic System Relief Valve Pressure | 4786.3 psi (33000 kPa) |
| Hydraulic Pump Flow Capacity | 36 gal/min (136 L/min) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
