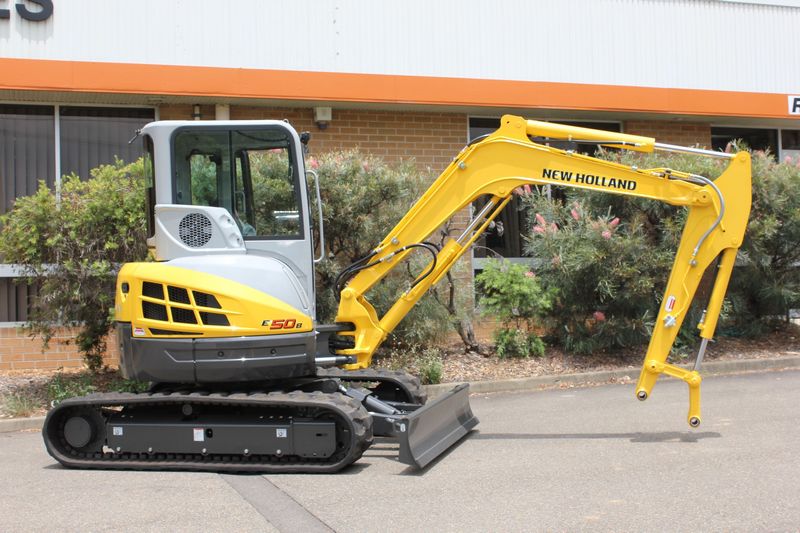

New Holland E50B
Browse All New Holland or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.16 ft in (5230 mm) |
| Shipping Height Of Unit | 8.6 ft in (2620 mm) |
| Max Loading Height | 13.42 ft in (4090 mm) |
| Max Reach Along Ground | 18.87 ft in (5750 mm) |
| Max Vertical Wall Digging Depth | 9.22 ft in (2810 mm) |
| Max Digging Depth | 11.78 ft in (3590 mm) |
Dimensions
| Width To Outside Of Tracks | 6.44 ft in (1960 mm) |
| Length Of Track On Ground | 6.47 ft in (1970 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Tail Swing Radius | 3.22 ft in (980 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88-XYB |
| Gross Power | 40.8 hp (30.4 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 133.6 cu in (2.2 L) |
Operational
| Operating Weight | 10383.8 lb (4710 kg) |
| Hydraulic System Relief Valve Pressure | 3335.9 psi (23000 kPa) |
| Hydraulic Pump Flow Capacity | 34.4 gal/min (130 L/min) |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
