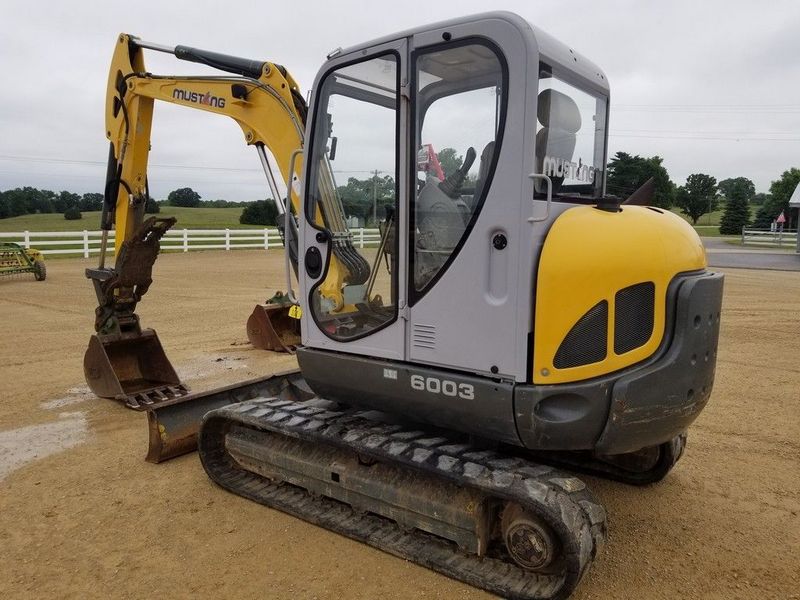

Mustang 6003
Browse All Mustang or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19 ft in (5792 mm) |
| Shipping Height Of Unit | 8.42 ft in (2565 mm) |
| Max Cutting Height | 18.5 ft in (5659 mm) |
| Max Loading Height | 13.08 ft in (3995 mm) |
| Max Reach Along Ground | 20 ft in (6096 mm) |
| Max Vertical Wall Digging Depth | 9.33 ft in (2855 mm) |
| Max Digging Depth | 12.58 ft in (3846 mm) |
| Boom/Stick Option (Hex) 1 | Standard Arm 5ft. 6in. (1676mm ) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 19 ft in (5792 mm) |
| Shipping Height Of Unit | 8.42 ft in (2565 mm) |
| Max Cutting Height | 19.18 ft in (5850 mm) |
| Max Loading Height | 13.75 ft in (4191 mm) |
| Max Reach Along Ground | 20.92 ft in (6375 mm) |
| Max Digging Depth | 13.58 ft in (2489 mm) |
| Max Vertical Wall Digging Depth | 10.25 ft in (3134 mm) |
| Boom/Stick Option (Hex) 2 | Optional Arm Length 6ft.6in. (1981mm ) |
Dimensions
| Width To Outside Of Tracks | 6.5 ft in (1989 mm) |
| Length Of Track On Ground | 6.5 ft in (1999 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Height To Top Of Cab | 8.42 ft in (2565 mm) |
| Tail Swing Radius | 4.75 ft in (1466 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Drawbar Pull | 13669 lb (60.8 kN) |
| Ground Pressure | 4.7 psi (32.34 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 2.92 mph (4.7 km/h) |
| Number Of Track Rollers Per Side | 5 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV98-VNS |
| Gross Power | 69 hp (51 kw) |
| Net Power | 57 hp (43 kw) |
| Displacement | 202.5 cu in (3.3 L) |
Operational
| Operating Weight | 12566 lb (5700 kg) |
| Hydraulic System Relief Valve Pressure | 3553 psi (24497.1 kPa) |
| Hydraulic Pump Flow Capacity | 49.5 gal/min (186.2 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 8296 lb ft (36.9 Nm) |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
