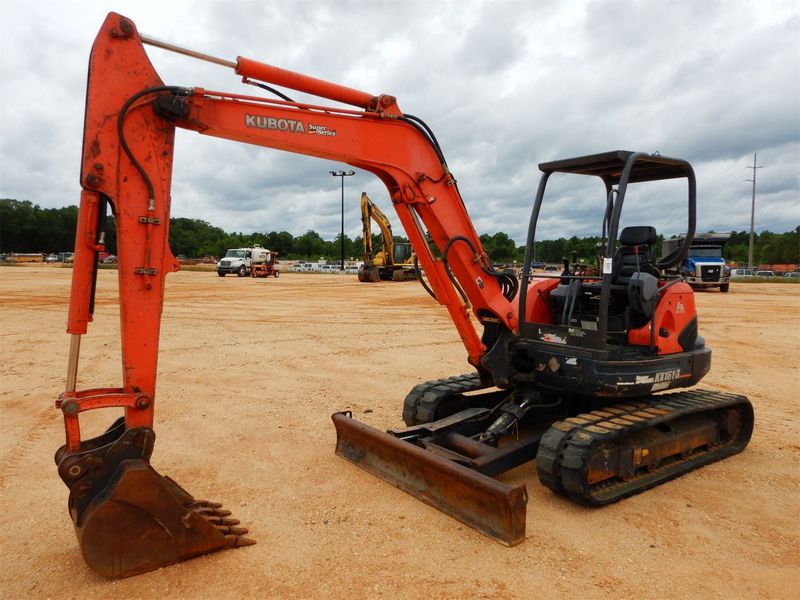

Kubota KX161-3
Browse All Kubota or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18.18 ft in (5539.74 mm) |
| Shipping Height Of Unit | 8.34 ft in (2539.99 mm) |
| Max Cutting Height | 18.75 ft in (5715 mm) |
| Max Loading Height | 13.67 ft in (4165.58 mm) |
| Max Reach Along Ground | 20.09 ft in (6121.39 mm) |
| Max Vertical Wall Digging Depth | 8.5 ft in (2590.81 mm) |
| Max Digging Depth | 12.59 ft in (3835.39 mm) |
Dimensions
| Width To Outside Of Tracks | 6.42 ft in (1955.78 mm) |
| Ground Clearance | 1.05 ft in (320.05 mm) |
Undercarriage
| Max Travel Speed | 2.9 mph (4.67 km/h) |
| Ground Pressure | 4.27 psi (29.45 kPa) |
Engine
| Engine Make | 2334 |
| Engine Model | V2403-M |
| Net Power | 47 hp (35.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 148.5 cu in (2.5 L) |
Operational
| Operating Weight | 11532 lb (5230.9 kg) |
| Fuel Capacity | 18.5 gal (70.1 L) |
| Hydraulic System Fluid Capacity | 17.7 gal (67.1 L) |
| Hydraulic Pump Flow Capacity | 31.4 gal/min (118.9 L/min) |
Swing Mechanism
| Swing Speed | 9.3 rpm |
