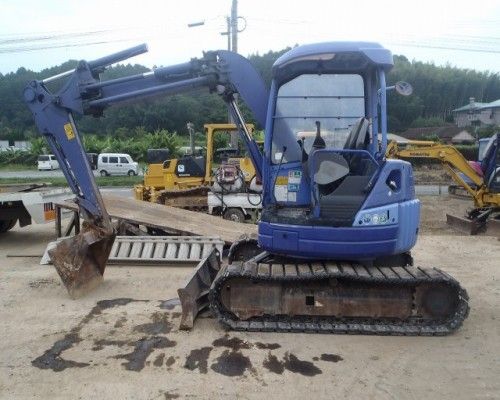

Komatsu PC58UU-3
Browse All Komatsu or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 20.75 ft in (6330 mm) |
| Max Cutting Height | 15.92 ft in (4840 mm) |
| Max Loading Height | 15.08 ft in (4600 mm) |
| Max Reach Along Ground | 13.08 ft in (4000 mm) |
| Max Vertical Wall Digging Depth | 11.5 ft in (3500 mm) |
| Max Digging Depth | 9.5 ft in (2900 mm) |
| Boom/Stick Option (Hex) 1 | 1060mm 3'6" |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 21.83 ft in (6660 mm) |
| Max Cutting Height | 16 ft in (4880 mm) |
| Max Loading Height | 13.08 ft in (3990 mm) |
| Max Reach Along Ground | 14.42 ft in (4400 mm) |
| Max Digging Depth | 10.33 ft in (3150 mm) |
| Boom/Stick Option (Hex) 2 | 1275mm 4'2" |
Dimensions
| Width To Outside Of Tracks | 1.33 ft in (400 mm) |
| Length Of Track On Ground | 17.5 ft in (5335 mm) |
| Ground Clearance | 6.25 ft in (1910 mm) |
| Height To Top Of Cab | 8.58 ft in (2610 mm) |
| Tail Swing Radius | 1.33 ft in (400 mm) |
| Removal Counterweight Clearance | 8.08 ft in (2470 mm) |
Undercarriage
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Drawbar Pull | 10251 lb (45.6 kN) |
| Number Of Track Rollers Per Side | 5 |
| Number Of Shoes Per Side | 38 |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D88E |
| Gross Power | 40 hp (29.4 kw) |
| Displacement | 133.6 cu in (2.2 L) |
Operational
| Operating Weight | 11670 lb (5290 kg) |
| Fuel Capacity | 21.1 gal (80 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 16.9 gal (64 L) |
| Engine Oil Capacity | 2.4 gal (9.1 L) |
| Alternator Supplied Amperage | 40 amps |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.3 m3) |
