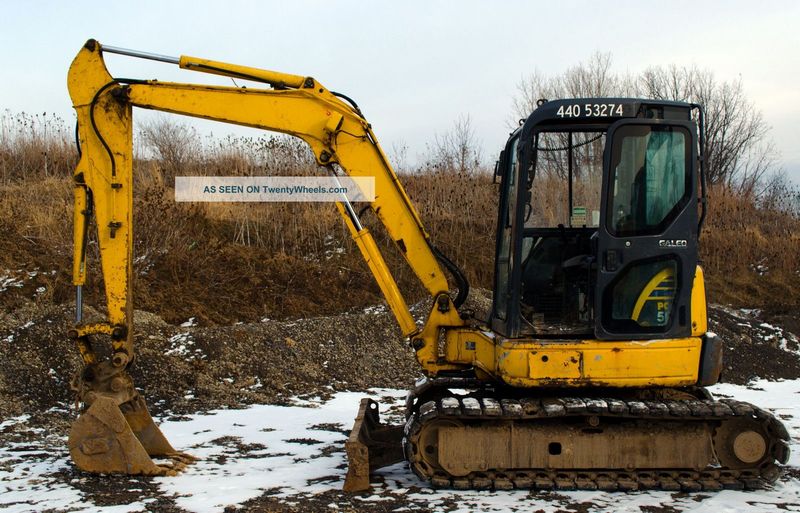

Komatsu PC50MR-2
Browse All Komatsu or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18.21 ft in (5550 mm) |
| Shipping Height Of Unit | 8.62 ft in (2625 mm) |
| Max Cutting Height | 19.51 ft in (5945 mm) |
| Max Loading Height | 13.88 ft in (4230 mm) |
| Max Reach Along Ground | 19.92 ft in (6070 mm) |
| Max Vertical Wall Digging Depth | 9.91 ft in (3020 mm) |
| Max Digging Depth | 12.47 ft in (3800 mm) |
| Boom/Stick Option (Hex) 1 | Arm 1640mm |
Dimensions
| Width To Outside Of Tracks | 6.35 ft in (1935 mm) |
| Length Of Track On Ground | 6.57 ft in (2000 mm) |
| Ground Clearance | 1.17 ft in (355 mm) |
| Height To Top Of Cab | 8.58 ft in (2625 mm) |
| Tail Swing Radius | 3.5 ft in (1060 mm) |
Undercarriage
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 4 |
| Max Travel Speed | 2.9 mph (4.6 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 3D88E-5 |
| Net Power | 39.4 hp (29.4 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 134 cu in (2.2 L) |
| Max Torque | 102.6 lb ft (139 Nm) |
| Torque Measured @ | 1440 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 11110 lb (5040 kg) |
| Fuel Capacity | 17.2 gal (65 L) |
| Cooling System Fluid Capacity | 1.9 gal (7.3 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 14.5 gal (55 L) |
| Engine Oil Capacity | 2.1 gal (8 L) |
| Alternator Supplied Amperage | 40 amps |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
