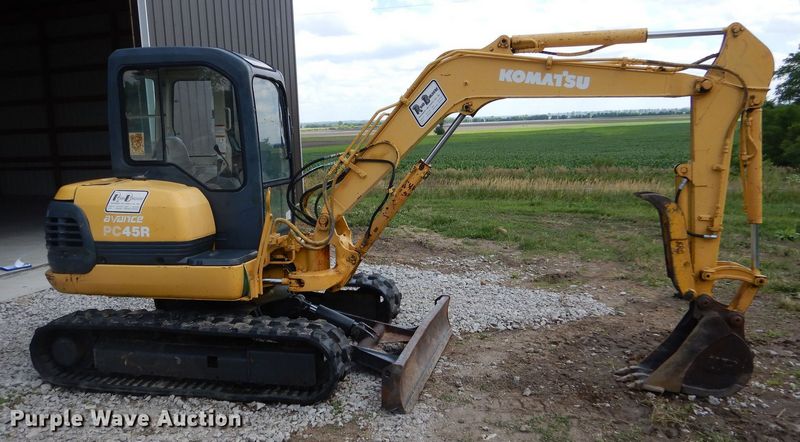

Komatsu PC45R-8
Browse All Komatsu or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18 ft in (5485 mm) |
| Shipping Height Of Unit | 8.4 ft in (2560 mm) |
| Max Cutting Height | 18.9 ft in (5760 mm) |
| Max Loading Height | 13.75 ft in (4190 mm) |
| Max Reach Along Ground | 19.07 ft in (5810 mm) |
| Max Vertical Wall Digging Depth | 8.54 ft in (2600 mm) |
| Max Digging Depth | 11.55 ft in (3520 mm) |
| Boom/Stick Option (Hex) 1 | 2840mm arm w/ stick 1480mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 18 ft in (5485 mm) |
| Shipping Height Of Unit | 8.4 ft in (2560 mm) |
| Max Cutting Height | 19.54 ft in (5955 mm) |
| Max Loading Height | 14.42 ft in (4395 mm) |
| Max Reach Along Ground | 20.21 ft in (6160 mm) |
| Max Digging Depth | 12.78 ft in (3895 mm) |
| Max Vertical Wall Digging Depth | 9.4 ft in (2865 mm) |
| Boom/Stick Option (Hex) 2 | 2840mm arm w/ stick 1900mm |
Dimensions
| Width To Outside Of Tracks | 6.24 ft in (1900 mm) |
| Length Of Track On Ground | 6.37 ft in (1940 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Height To Top Of Cab | 8.4 ft in (2560 mm) |
| Tail Swing Radius | 4.83 ft in (1470 mm) |
| Removal Counterweight Clearance | 2.1 ft in (640 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 4.93 ft in (1500 mm) |
| Number Of Track Rollers Per Side | 5 |
| Number Of Shoes Per Side | 38 |
| Ground Pressure | 4.12 psi (28.41 kPa) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D84E-3FA |
| Gross Power | 44.1 hp (32.9 kw) |
| Net Power | 38.8 hp (28.9 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 121.8 cu in (2 L) |
| Max Torque | 87.1 lb ft (118 Nm) |
| Torque Measured @ | 1800 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 10472 lb (4750 kg) |
| Fuel Capacity | 13.7 gal (51.5 L) |
| Cooling System Fluid Capacity | 2 gal (7.5 L) |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 8.8 gal (33 L) |
| Engine Oil Capacity | 2.2 gal (8 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3626 psi (25000 kPa) |
| Hydraulic Pump Flow Capacity | 34.3 gal/min (129.5 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
