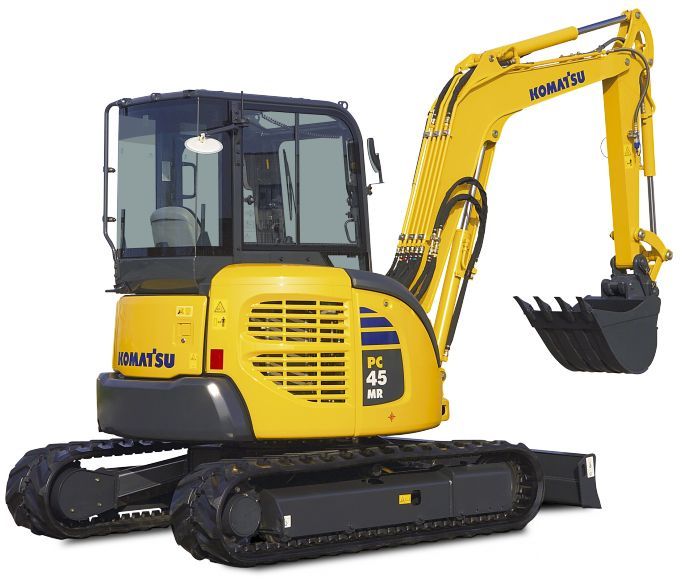

Komatsu PC45MR-3
Browse All Komatsu or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.49 ft in (5330 mm) |
| Shipping Height Of Unit | 8.37 ft in (2550 mm) |
| Max Cutting Height | 18.8 ft in (5730 mm) |
| Max Loading Height | 13.33 ft in (4060 mm) |
| Max Reach Along Ground | 19.31 ft in (5885 mm) |
| Max Vertical Wall Digging Depth | 10.04 ft in (3060 mm) |
| Max Digging Depth | 12.05 ft in (3670 mm) |
| Boom/Stick Option (Hex) 1 | Arm 1695mm 5"6" |
Dimensions
| Width To Outside Of Tracks | 6.44 ft in (1960 mm) |
| Length Of Track On Ground | 6.57 ft in (2000 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 3.48 ft in (1060 mm) |
| Removal Counterweight Clearance | 2 ft in (608 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 5.12 ft in (1560 mm) |
| Drawbar Pull | 9440 lb (42 kN) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 4 |
| Ground Pressure | 3.6 psi (24.83 kPa) |
Engine
| Engine Make | 2238 |
| Engine Model | 4D88E-6 |
| Net Power | 38.2 hp (28.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 134 cu in (2.2 L) |
Operational
| Operating Weight | 10571.2 lb (4795 kg) |
| Fuel Capacity | 17.2 gal (65 L) |
| Cooling System Fluid Capacity | 2.3 gal (8.5 L) |
| Hydraulic System Fluid Capacity | 5.3 gal (20 L) |
| Engine Oil Capacity | 2 gal (7.5 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3840 psi (26475.9 kPa) |
| Hydraulic Pump Flow Capacity | 37.2 gal/min (140.8 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
