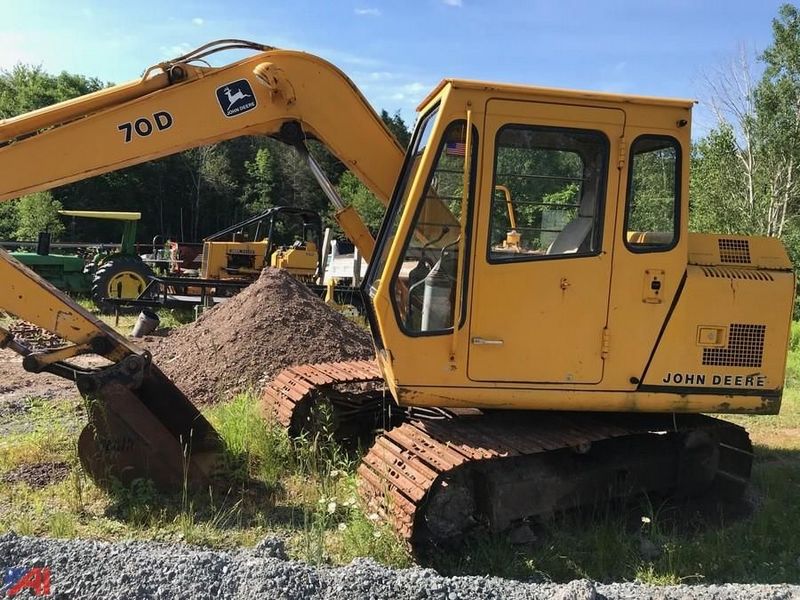

John Deere 70D
Browse All John Deere or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 20.05 ft in (6110 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
Dimensions
| Width To Outside Of Tracks | 7.71 ft in (2350 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 300 Series |
| Net Power | 55 hp (41.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 239 cu in (4 L) |
| Max Torque | 158 lb ft (214.3 Nm) |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 14020 lb (6359.4 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 42 amps |
| Hydraulic System Relief Valve Pressure | 640 psi (4412.7 kPa) |
| Hydraulic Pump Flow Capacity | 4.7 gal/min (17.8 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
