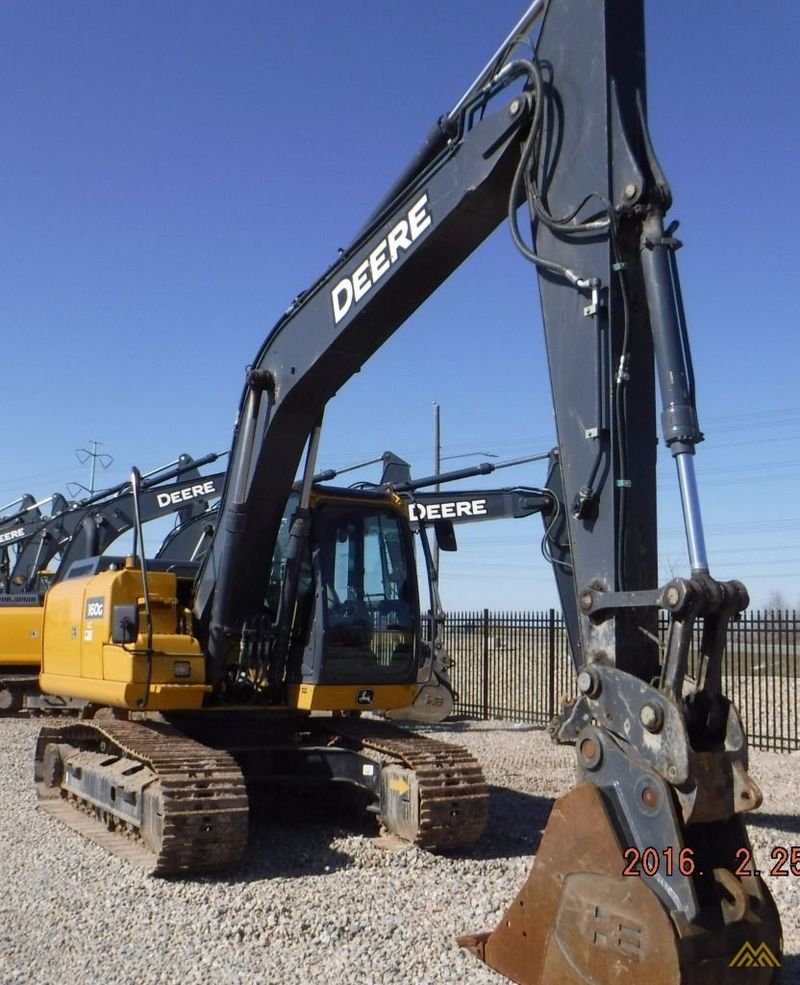

John Deere 160GLC
Browse All John Deere or Midi Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Tail Swing Radius | 8.37 ft in (2550 mm) |
| Track Gauge | 6.53 ft in (1990 mm) |
| Digging Reach - Mono Boom | 30.62 ft in (9330 mm) |
| Dump Height - Mono Boom | 21 ft in (6400 mm) |
| Ground Level Reach - Mono Boom | 30.06 ft in (9160 mm) |
| Overall Width | 8.83 ft in (2690 mm) |
| Standard Dipper | 10.18 ft in (3100 mm) |
| Track Length On Ground | 10.18 ft in (3100 mm) |
| Transport Height - Maximum | 10.21 ft in (3110 mm) |
| Transport Length Mono Boom | 28.38 ft in (8650 mm) |
| Undercarriage Overall Length | 12.87 ft in (3920 mm) |
| Dig Depth - 2.44m 8 Ft Flat Bottom | 20.58 ft in (6270 mm) |
| Width Over Standard Tracks | 8.83 ft in (2690 mm) |
| Dig Depth - Mono Boom | 21.3 ft in (6490 mm) |
| Dig Height - Mono Boom | 29.96 ft in (9130 mm) |
Driveline
| Displacement | 274.7 cu in (4.5 L) |
| Engine Manufacturer | John Deere Power Tech |
| Emission Rating | Tier 4 |
| Rated Speed | 2200 rpm |
| Engine Output - Net | 120.7 hp (90 kw) |
| Track Shoe Width | 27.6 in (700 mm) |
| Number Of Cylinders | 4 |
| Number Of Carrier Rollers - Each Side | 1 |
| Number Of Track Rollers - Each Side | 7 |
Capacities
| Fuel Tank - Diesel | 58.2 gal (220 L) |
| Hydraulic Tank | 15.9 gal (60 L) |
| System Voltage | 24 V |
| Number Of Batteries | 2 |
Performance
| Tractive Force | 35519.9 lb (158 kN) |
| Ground Bearing Pressure | 5.1 psi (35 kPa) |
| Slew Torque | 32.5 lb ft (44 Nm) |
| Boost Pressure | 5511 psi (37997 kPa) |
| Breakout - Bucket | 26752.3 lb (119 kN) |
| Bucket Pressure | 343 |
| Dipper Tearout | 18434.4 lb (82 kN) |
| End Lift - 7.5m Reach | 6944.6 lb (3150 kg) |
| Gradeability | 70 % |
| Main Pumps - Maximum Flow | 101 gal/min (382 L/min) |
| Side Lift - 7.5m Reach | 4188.8 lb (1900 kg) |
| Travel Speed - High | 3.3 mph (5.3 km/h) |
Weights
| Operating Weight | 39562 lb (17945 kg) |
